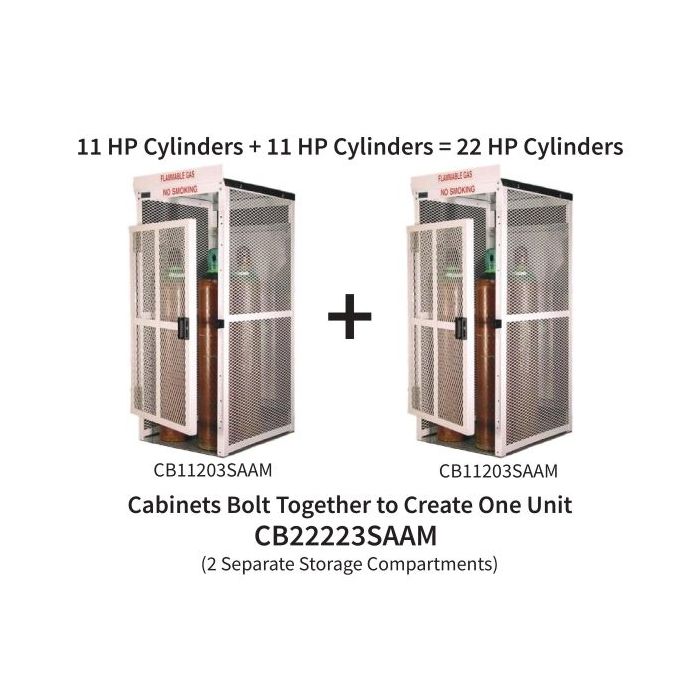

22 Cylinders - Large Tanks - Outdoor - Vertical Storage - Steel & Mesh - Gas Cylinder Cage
Out of stock
Model #
CB22223SAAM
$2,295.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order - Contact for pricing
Cabinet capacity: Up to 22 cylinders of 9" diameter or equivalent combination
Cabinet dimensions:
62"w x 38"d x 82"h
Gas Cylinder Locker Features:
- Gas cylinder locker meets OSHA 1910 and NFPA regulations
- Two compartments (both hold up to 11 cylinders)
- Two CB11203SAAM cabinets bolted together
- Lockable doors with heavy duty lock receiver (lock not included)
- Stainless steel hinges (2 - 8" long)
- Mesh sides and door allow visibility into cabinet
- Top and back are solid galvanized steel
- 3/16" Aluminum diamond floor plate
- Powder coated with outdoor grade paint for extra durability
- Safety signage in large red letters
- Product panels bolt together and can be disassembled
- Cabinets ship individually assembled, and easily bolt together
- Made in the USA
- A safety chain set (Model # CB001AM) can be added to this product (optional)
- Product weight: 510 lbs
22 Cylinders - Large Tanks - Outdoor - Vertical Storage - Steel & Mesh - Gas Cylinder Cage
Model #
CB22223SAAM
Description:
This gas cylinder cage holds up to 22 cylinders (9" diameter) in vertical position (11 in one compartment and 11 in the other compartment). The tank cabinet features steel galvanized screen that is coated with hi-build electrostatic powder coating. The top and back is made from solid galvanized steel panels. The door includes tamper-resistant stainless steel hinges and has a heavy-duty lock receiver (lock is not included). There are four 1/2" pre-drilled holes in the 3/16" thick bright aluminum diamond plate floor of each compartment available for anchoring. There is "Flammable Gas - No Smoking" signage on the front of the cabinet. Meets OSHA and NFPA requirements for cylinder storage. Ships assembled. This product is made in the USA. Optional safety chain set available for purchase separately. Cabinet external dimensions (WxDxH): 62" x 38" x 82"
MPN:
HP22223SA
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
