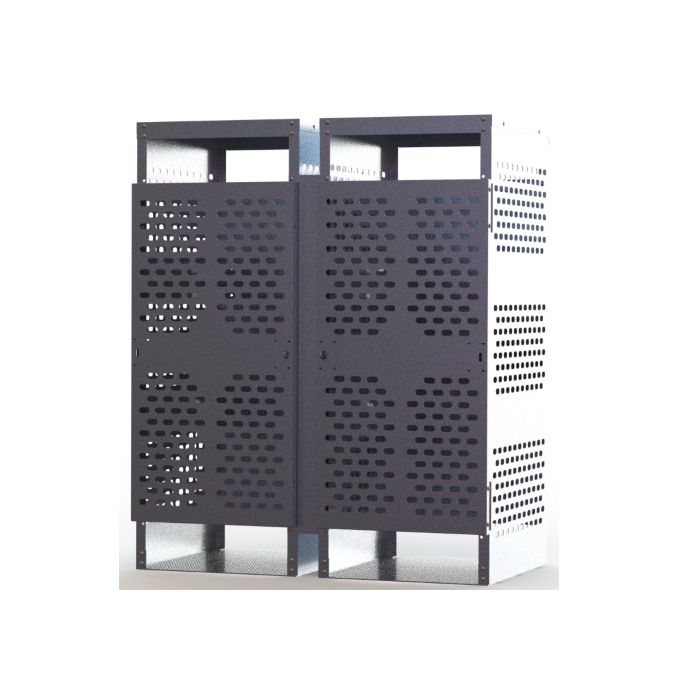

22 Cylinders - Large Tanks - Outdoor - Vertical Storage - Laser Cut Aluminum - Gas Cylinder Cage
Out of stock
Model #
CBAL22223SAAM
$2,295.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order - Contact for pricing
Cabinet capacity: Up to 22 cylinders of 9" diameter or equivalent combination
Cabinet dimensions:
62"w x 38"d x 82"h
Gas Cylinder Locker Features:
- Gas cylinder locker meets OSHA 1910 and NFPA regulations
- 2 storage compartments (holds up to 11 cylinders in each compartment)
- Lockable door with heavy duty lock receiver (lock not included)
- Stainless steel hinges
- Laser cut aluminum sides and door allow visibility into cabinet
- Top and back are solid aluminum panels
- Pre-drilled holes (1/2") in floor plate for anchoring
- Aluminum diamond floor plate
- Flammable signage in large red letters
- Product panels bolt together and can be disassembled
- Ships assembled
- Made in the USA
- A safety chain set (Model # CB001AM) can be added to this product (optional)
- Product weight: 204 lbs
22 Cylinders - Large Tanks - Outdoor - Vertical Storage - Laser Cut Aluminum - Gas Cylinder Cage
Model #
CBAL22223SAAM
Description:
This gas cylinder cabinet holds up to 22 cylinders (9" diameter) in vertical position (11 cylinders in one compartment and 11 cylinders in the other compartment). The cabinet features heavy laser-cut aluminum door and side panels. The top and back of the cabinet is made from solid aluminum panels. The doors swing on tamper-resistant stainless steel hinges and has a heavy duty lock receiver (lock is not included). Also comes with bright aluminum diamond floor plate. There is "Flammable - No Smoking" signage on the front of the cabinet. Meets OSHA and NFPA requirements for cylinder storage. Ships assembled. This product is made in the USA. Optional safety chain sets available for purchase separately (Model# CB001AM). Cabinet external dimensions (WxDxH): 62" x 38" x 82"
MPN:
A-HP22223SA
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Place cabinet on level surface. Cabinet frame bolts (9/16") can be loosened to shift the panels if needed to level the cabinet to the ground surface or square up the door. The cabinet floor plate has a pre-drilled 1/2" holes that can be used to anchor the cabinet if required.
1 year warranty against manufacturing defects.
Ships fully assembled on a pallet by freight truck. Loading dock or forklift required for delivery. If neither are available please request liftgate delivery at time of order.
