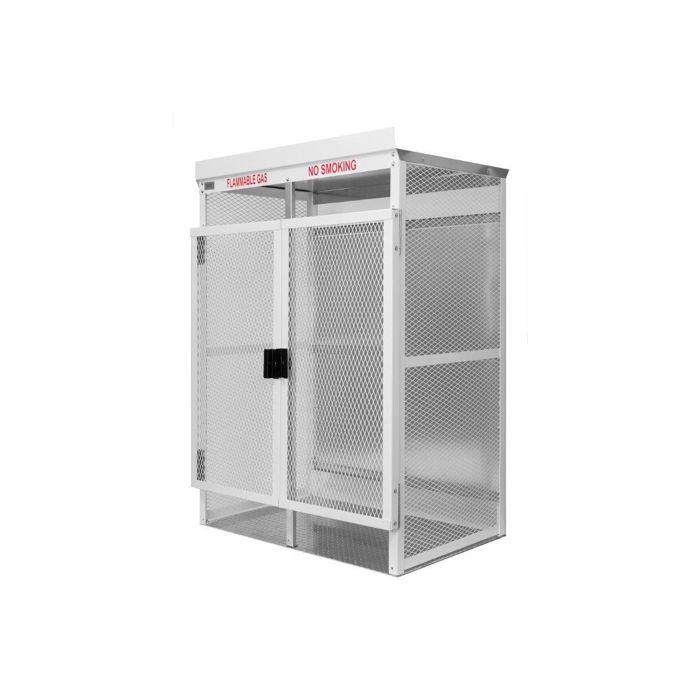

23 Cylinders - Large Tanks - Outdoor - Vertical Storage - Steel & Mesh - Gas Cylinder Cage
In stock
Model #
CB23403DAAM
$1,995.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 2-3 weeks from order date. You will be sent a tracking # upon shipment.
Cabinet capacity: 23 cylinders of 9" diameter or 7 - 100 lb propane cylinders or equivalent combination
Cabinet dimensions:
External:
58"w
x
38"d x 82"h
Internal (approx): 57"w x 34"d x 75"h
Internal (approx): 57"w x 34"d x 75"h
Gas Cylinder Locker Features:
- Gas cylinder locker meets OSHA 1910 and NFPA regulations
- Lockable door with heavy duty lock receiver (lock not included)
- Two doors
- Four 8" stainless steel door hinges
- Mesh sides and door allow visibility into cabinet
- Door and sides painted white with hi-build electrostatic powder coating
- Top and back are solid galvanized steel
- 3/16" Aluminum diamond floor plate
- Pre-drilled holes (1/2") in floor plate for anchoring
- Powder coated with outdoor grade paint for extra durability
- Safety signage included
- Ships assembled ready for use
- Made in the USA
- Product panels bolt together and can be disassembled
- A safety chain set (Model # CB001AM) can be added to this product (optional)
- Product weight: 340 lbs
23 Cylinders - Large Tanks - Outdoor - Vertical Storage - Steel & Mesh - Gas Cylinder Cage
Model #
CB23403DAAM
Description:
The cabinet holds up to 23 tall tanks (9" diameter) or seven 100 lb propane cylinders in a vertical position. The cabinet doors and side panels are made with formed galvannealed steel angles and galvanized expanded metal that is coated with hi-build electrostatic powder coating. The top and back of the cabinet is made from solid galvanized steel panels. This safety gas cylinder cage has two doors with tamper resistant stainless steel hinges and a heavy duty lock receiver. "Flammable Gas - No Smoking" signage is included. Meets OSHA and NFPA requirements for LP fuel cylinder storage. There are four 1/2" pre-drilled holes in the 3/16" thick bright aluminum diamond plate floor of the cabinet available for anchoring. Ships assembled. This product is made in the USA. Optional safety chain set available for purchase separately. Cabinet dimensions (WxDxH): External: 58" x 38" x 82", Estimated Internal Dimensions: 57" x 34" x 75". 25.5" wide doorway clearance (between center post and side frame of cabinet). The space between the top of the cabinet and sides/back/door is 7 3/4". The space between sides/back/door and the ground is 8 3/4".
MPN: HP23403DA
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Place cabinet on level surface. Cabinet frame bolts (9/16") can be loosened to shift the panels if needed to level the cabinet to the ground surface or square up the door. The cabinet floor has pre-drilled 1/2" holes that can be used to anchor the cabinet if required. It is suggested that the cabinet be anchored to the mounting surface. Check with your authority having jurisdiction to confirm anchoring is required. Use the appropriate hardware for the mounting surface. Mounting hardware not included.
1 year warranty against manufacturing defects.
Ships fully assembled on a pallet by freight truck. Loading dock or forklift required for delivery. If neither are available please request liftgate delivery at time of order.
