24 Cylinders - Large Tanks - Outdoor - Vertical Storage - Steel & Mesh - Gas Cylinder Cage
In stock
Model #
CB24332SAAM
$2,360.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 2-3 weeks from order date. You will be sent a tracking # upon shipment.
Cabinet capacity: Up to 24 cylinders of 9" diameter or equivalent combination
Cabinet dimensions:
90"w x 29"d x 82"h
Gas Cylinder Locker Features:
- Gas cylinder locker meets OSHA 1910 and NFPA regulations
- Two compartments (both hold up to 12 cylinders)

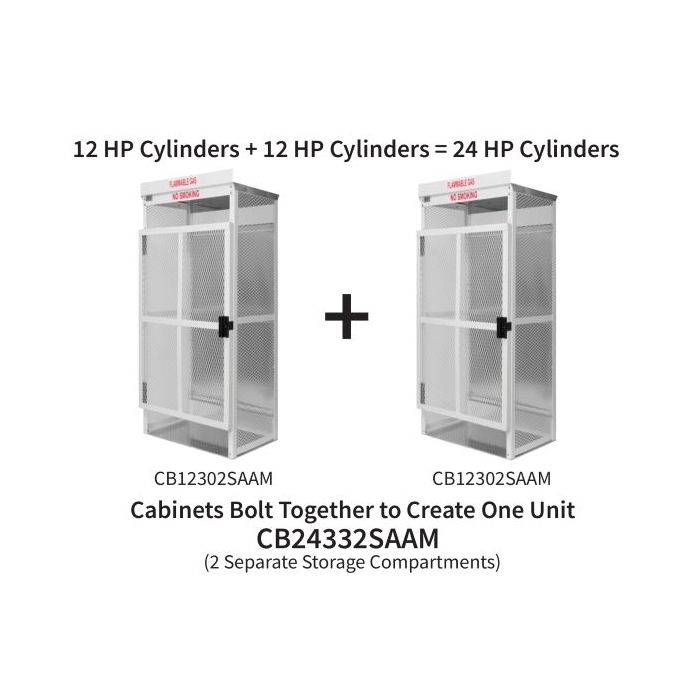

- Two CB12302SAAM cabinets bolted together
- Lockable doors with heavy duty lock receiver (lock not included)
- 8" stainless steel hinges
- Mesh sides and door allow visibility into cabinet
- Top and back are solid galvanized steel
- 3/16" Aluminum diamond floor plate
- Powder coated with outdoor grade paint for extra durability
- Safety signage in large red letters
- Product panels bolt together and can be disassembled
- Pre-drilled holes (1/2") in floor plate for anchoring
- Cabinet ships fully assembled
- Made in the USA
- A safety chain set (Model # CB001AM) can be added to this product (optional)
- Product weight: 525 lbs
24 Cylinders - Large Tanks - Outdoor - Vertical Storage - Steel & Mesh - Gas Cylinder Cage
Model #
CB24332SAAM
Description:
This gas cylinder cage holds up to 24 cylinders (9" diameter) in vertical position (12 in one compartment and 12 in the other compartment). The tank cabinet features steel galvanized screen that is coated with hi-build electrostatic powder coating. The top and back is made from solid galvanized steel panels. The door includes tamper-resistant stainless steel hinges and has a heavy-duty lock receiver (lock is not included). There is "Flammable Gas - No Smoking" signage on the front of the cabinet. There are four 1/2" pre-drilled holes in the 3/16" thick bright aluminum diamond plate floor of each compartment available for anchoring. Meets OSHA and NFPA requirements for cylinder storage. Ships assembled. This product is made in the USA. Optional safety chain set available for purchase separately. Cabinet external dimensions (WxDxH): 90" x 29" x 82"
MPN:
HP24332SA
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Place cabinet on level surface. Cabinet frame bolts (9/16") can be loosened to shift the panels if needed to level the cabinet to the ground surface or square up the door. The cabinet floor plate has a pre-drilled 1/2" holes that can be used to anchor the cabinet if required.
1 year warranty against manufacturing defects.
Ships fully assembled on a pallet by freight truck. Loading dock or forklift required for delivery. If neither are available please request liftgate delivery at time of order.
