22 Cylinders - Firewall Separated - Large Tanks - Outdoor - Vertical Storage - Laser Cut Aluminum - Gas Cylinder Cage
In stock
Model #
CBAL22223SFWXDAAM
$2,995.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 1-2 weeks from order date. You will be sent a tracking # upon shipment.
Cabinet capacity: Up to 22 cylinders of 9" diameter or equivalent combination
Cabinet dimensions:
62"w x 38"d x 82"h
Gas Cylinder Locker Features:
- Gas cylinder locker meets OSHA 1910 and NFPA regulations
- Two compartments (up to 11 cylinders per compartment)

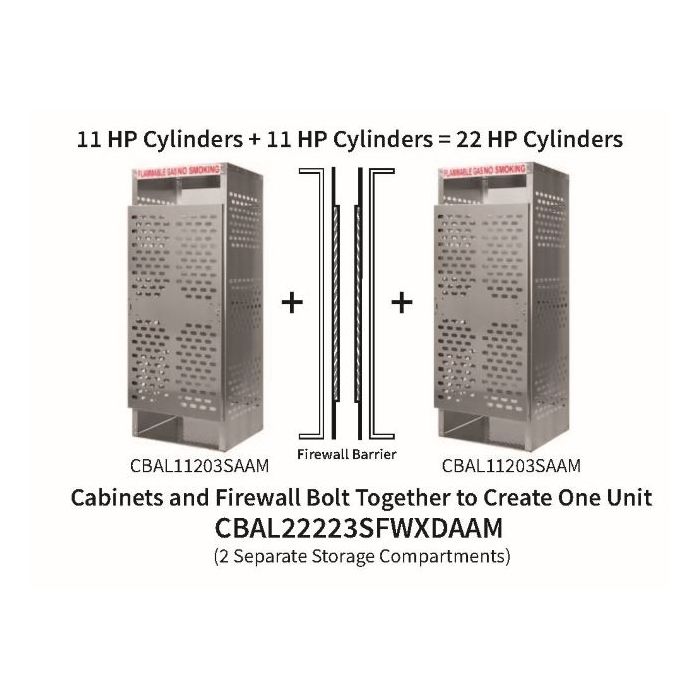

- Two CBAL11203SAAM cabinets bolted together
- Compartments are separated with 1-hour firewall construction
- Lockable doors with heavy duty lock receiver (lock not included)
- 8" stainless steel hinges
- Laser cut aluminum sides and door allow visibility into cabinet
- Top and back are solid aluminum panels
- Aluminum diamond floor plate
- Powder coated with outdoor grade paint for extra durability
- Safety signage in large red letters
- Product panels bolt together and can be disassembled
- Pre-drilled holes (1/2") in floor plate for anchoring
- Cabinets ship individually assembled, and easily bolt together
- A safety chain set (Model # CB001AM) can be added to this product (optional)
- Product weight: 404 lbs
22 Cylinders - Firewall Separated - Large Tanks - Outdoor - Vertical Storage - Laser Cut Aluminum - Gas Cylinder Cage
Model #
CBAL22223SFWXDAAM
Description:
This gas cylinder cage holds up to 22 cylinders (9" diameter) in vertical position (11 cylinders in one compartment and 11 in the other compartment). The two compartments are separated by a 1-hour rated firewall construction for safe storage of oxygen and fuel cylinders. The firewall construction consists of two fire-rated sheetrock panels wrapped in galvanized steel panels and an airspace gap which all together provides a 1-hour fire rating. The cabinet features heavy laser-cut aluminum door and side panels. The top and back of the cabinet is made from solid aluminum panels. The doors swing on tamper-resistant stainless steel hinges and has a heavy-duty lock receiver (lock is not included). The storage cabinet floor is made of aluminum diamond floor plate. There is "Flammable Gas - No Smoking" signage on the front of the cabinet. Meets OSHA and NFPA requirements for cylinder storage. There are pre-drilled holes in the bottom floor plate of the cabinet available for anchoring. Ships assembled. Optional safety chain set available for purchase separately. Cabinet external dimensions (WxDxH): 62" x 38" x 82" Firewall Dimensions (DxH): 34" x 74.75"
MPN:
A-HP22223SFWXDA
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Place cabinet on level surface. Cabinet frame bolts (9/16") can be loosened to shift the panels if needed to level the cabinet to the ground surface or square up the door. The cabinet floor plate has a pre-drilled 1/2" holes that can be used to anchor the cabinet if required.
1 year warranty against manufacturing defects.
Ships fully assembled on a pallet by freight truck. Loading dock or forklift required for delivery. If neither are available please request liftgate delivery at time of order.
