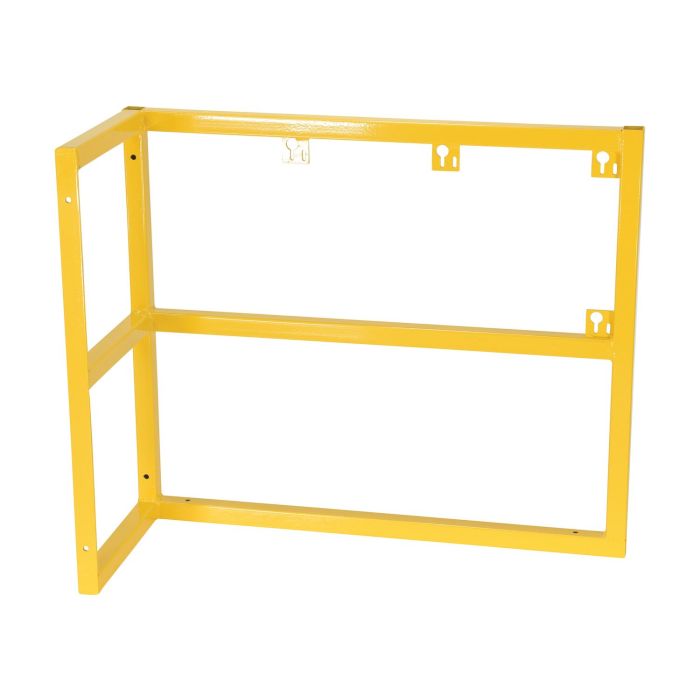

Add-On Extension to Modular Gas Cylinder Barricade - Adds 3 Cylinder Positions (1X3)
In stock
Model #
BR3EXTVT
$175.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 7-10 weeks from order date. You will be sent a tracking # upon shipment.
Additional cylinder capacity: 3
Cylinder diameters supported: Up to 13"
Extension configuration: 1 wide x 3 deep
Compatible primary rack: BR1X3VT
Cylinder diameters supported: Up to 13"
Extension configuration: 1 wide x 3 deep
Compatible primary rack: BR1X3VT
Rack dimensions:
15.25"w x 37.5"d x 32"h
This is an add-on extension arm for a modular barricade rack system. Requires primary unit (model # BR1X3VT).
Cylinder Rack Features:
- Supports facility compliance with OSHA, NFPA 1, NFPA 55, and CGA P-1 guidelines
- Steel frame construction
- Two levels of chains
- Two pre-drilled 13/32" diameter floor mounting holes per arm
- Yellow baked-in powder-coated finish
- Bulk cylinder storage
- Industrial and commercial use
- Made in the USA
- Product weight: 35 lbs
Add-On Extension to Modular Gas Cylinder Barricade - Adds 3 Cylinder Positions (1X3)
Model #
BR3EXTVT
Description:
This is an add-on extension for the three-cylinder-deep modular barricade rack system. It is not a complete freestanding rack and requires a compatible BR1X3VT primary rack. The extension adds one adjacent bay with three cylinder positions arranged front to back. Additional extensions can be attached to the compatible primary unit to build wider three-deep configurations.
The steel extension frame has a yellow baked-in powder-coated finish for a smooth, durable surface. Three 13/32" floor-mounting holes are provided. Product dimensions (WxDxH): 15.25" x 37.5" x 32".
This is an add-on extension for the three-cylinder-deep modular barricade rack system. It is not a complete freestanding rack and requires a compatible BR1X3VT primary rack. The extension adds one adjacent bay with three cylinder positions arranged front to back. Additional extensions can be attached to the compatible primary unit to build wider three-deep configurations.
The steel extension frame has a yellow baked-in powder-coated finish for a smooth, durable surface. Three 13/32" floor-mounting holes are provided. Product dimensions (WxDxH): 15.25" x 37.5" x 32".
USA Ref #: CYL-FMSR-3-EXT
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
This add-on extension is not a complete freestanding rack and must be attached to a compatible primary rack or previously installed extension. Position the extension beside the existing rack, align the adjoining frame members and pre-drilled connection points, and securely fasten the extension using the supplied connection hardware.
After the extension is connected, anchor each frame arm to the ground/floor using hardware appropriate for the mounting surface. Confirm that the completed assembly is level, stable, and securely fastened before loading cylinders. A site survey by the authority having jurisdiction is recommended to confirm suitability and compliance with applicable local requirements.
Includes a 90-day limited warranty covering defects in material and workmanship on original components, subject to the warranty terms and exclusions.
Ships on a pallet by freight truck.
