26 Cylinders - Large Tanks - Outdoor - Vertical Storage - Double Door & Single Door - Steel & Mesh - Gas Cylinder Cage

$1,435.00
(Model #CB26323DAAM)
PRICE:
$1,435.00
$1,435.00
Status: Built to order
Shipping: Ships 5-10 business days from order date. You will be sent a tracking # upon shipment.
Cabinet capacity: Up to 26 cylinders of 9" diameter or equivalent combination
Cabinet dimensions: 76"w x 38"d x 82"h
Call 877-805-8650 with inquiries or to order by phone.
Gas Cylinder Locker Features:
  • Gas cylinder locker meets OSHA 1910 and NFPA regulations
  • 2 storage compartments (one holds up to 15 cylinders and the other 11)
  • Lockable doors with heavy duty lock receiver (lock not included)
  • 8" stainless steel hinges
  • Mesh sides and door allow visibility into cabinet
  • Top and back are solid galvanized steel
  • Aluminum diamond floor plate
  • Powder coated with outdoor grade paint for extra durability
  • Safety signage in large red letters
  • Pre-drilled holes (13/16") in the four corners of the floor plate for anchoring
  • Product panels bolt together and can be disassembled
  • Ships assembled
  • Optional safety chain available for purchase separately
  • Product Weight: 520 lbs
Product Description:

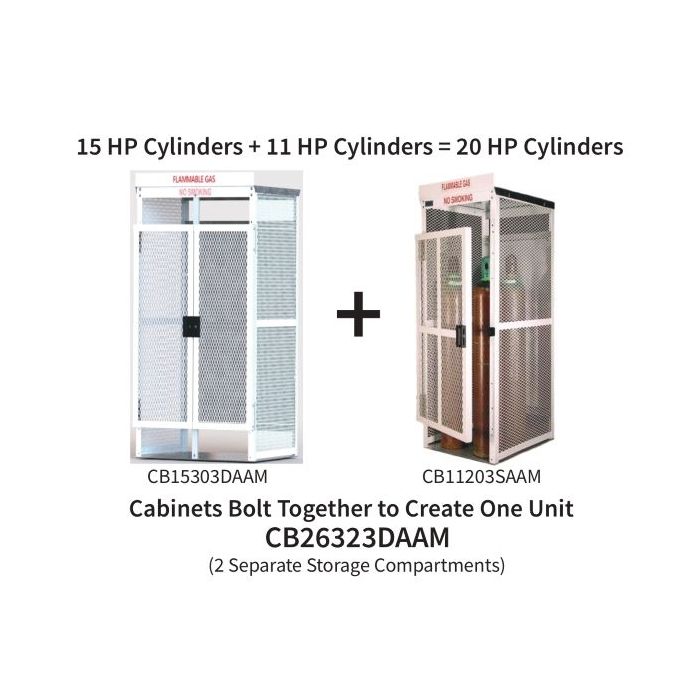

This gas cylinder cabinet holds up to 26 cylinders (9" diameter) in vertical position (15 cylinders on one side and 11 cylinders on the other side). The tank cabinet features steel galvanized screen that is coated with hi-build electrostatic powder coating. The top and back of the cabinet is made from solid galvanized steel panels. There are double doors on the larger compartment and a single door on the smaller compartment. Both use tamper resistant stainless steel hinges and there is a heavy duty lock receiver (lock is not included). Also comes with bright aluminum diamond floor plate and "Flammable Gas - No Smoking" signage. There are pre-drilled holes in the bottom corners of the cabinet for anchoring. Meets OSHA and NFPA requirements for cylinder storage. Ships assembled. Optional safety chain set available for purchase separately. Cabinet dimensions (WxDxH): External: 76" x 38" x 82" MPN: HP26323DA
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
