26 Cylinders - Large Tanks - Outdoor - Vertical Storage - Double Door & Single Door - Laser Cut Aluminum - Gas Cylinder Cage
In stock
Model #
CBAL26323DAAM
$2,750.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 1-2 weeks from order date. You will be sent a tracking # upon shipment.
Cabinet capacity: Up to 26 cylinders of 9" diameter or equivalent combination
Cabinet dimensions:
External:
76"w
x
38"d x 82"h
Internal (approx) (WxDxH): 43"x34"x75" and 29"x34"x75"
Internal (approx) (WxDxH): 43"x34"x75" and 29"x34"x75"
Gas Cylinder Locker Features:
- Gas cylinder locker meets OSHA 1910 and NFPA regulations

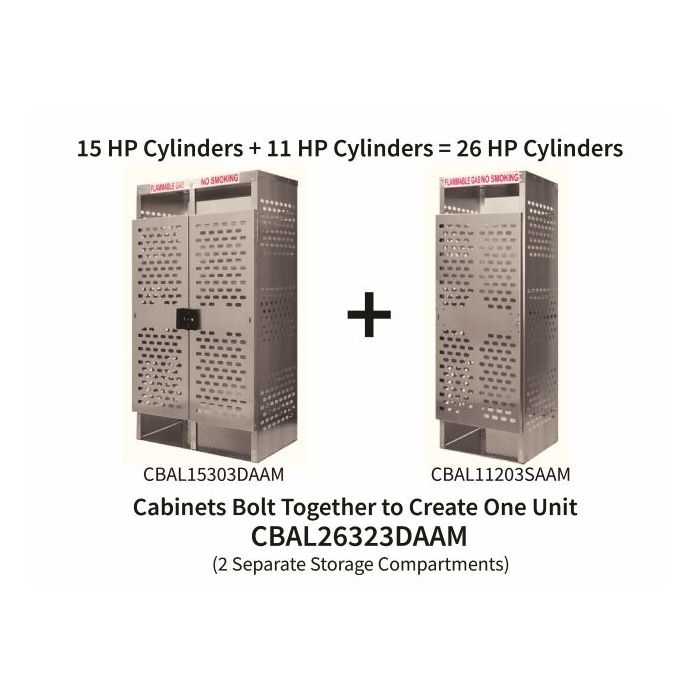

- 2 storage compartments (one holds up to 15 cylinders and the other 11 cylinders)
- CBAL15303DAAM and CBAL11203SAAM cabinets bolted together
- Double doors and a single door with heavy duty lock receiver (lock not included)
- 8" stainless steel hinges
- Laser cut aluminum panels
- Top and back are solid aluminum panels
- 3/16" Aluminum diamond floor plate
- Safety signage in large red letters
- Pre-drilled holes (1/2") in floor plate for anchoring
- Product panels bolt together and can be disassembled
- Ships assembled
- Made in the USA
- Optional safety chain available for purchase separately
- Product weight: 225 lbs
26 Cylinders - Large Tanks - Outdoor - Vertical Storage - Double Door & Single Door - Laser Cut Aluminum - Gas Cylinder Cage
Model #
CBAL26323DAAM
Description:
This gas cylinder cabinet has two compartments and holds up to 26 cylinders (9" diameter) in vertical position (15 cylinders on one side and 11 cylinders on the other side). The tank cabinet features laser cut aluminum panels. The top and back of the cabinet is made from solid aluminum panels. The larger compartment has double doors and the smaller compartment has a single door. Both use tamper-resistant stainless steel hinges and a heavy-duty lock receiver (lock is not included). There are four 1/2" pre-drilled holes in the 3/16" thick bright aluminum diamond plate floor of each compartment available for anchoring. Also comes with "Flammable Gas - No Smoking" signage. Meets OSHA and NFPA requirements for cylinder storage. Ships assembled. This product is made in the USA. Optional safety chain set available for purchase separately. Cabinet external dimensions (WxDxH): 76" x 38" x 82"
MPN: A-HP26323DA
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Place cabinet on level surface. Cabinet frame bolts (9/16") can be loosened to shift the panels if needed to level the cabinet to the ground surface or square up the door. The cabinet floor has pre-drilled 1/2" holes that can be used to anchor the cabinet if required. It is suggested that the cabinet be anchored to the mounting surface. Check with your authority having jurisdiction to confirm anchoring is required. Use the appropriate hardware for the mounting surface. Mounting hardware not included.
1 year warranty against manufacturing defects.
Ships fully assembled on a pallet by freight truck. Loading dock or forklift required for delivery. If neither are available please request liftgate delivery at time of order.
