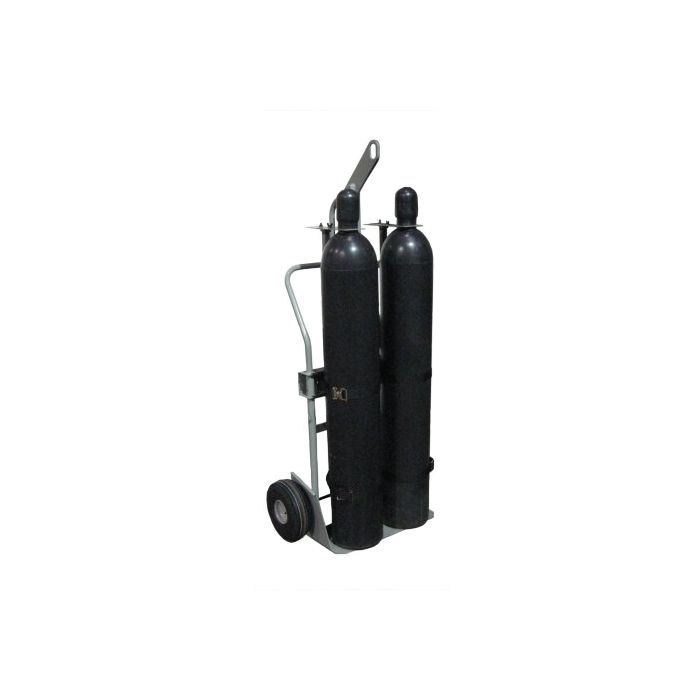

2 Cylinders - Hoist Hook - Gas Cylinder Hand Truck

(Model #HT3552FS)
Status: Built to order
Shipping: Ships 10-20 business days from order date. You will be sent a tracking # upon shipment.
Hand truck capacity: 2
Cylinder diameters supported: Up to 12" diameter
Weight capacity: 600 lbs
Hand truck dimensions: 32"w x 20"d x 71"h
Call 877-805-8650 with inquiries or to order by phone.
Cylinder Hand Truck Features:
  • Hook attachment for transport with hoist rigs
  • Clamping posts to secure cylinders at any angle
  • 10.5" diameter four-ply fully pneumatic wheels
  • UFC, NFPA, CGA, & OSHA compliant
  • Dual ball bearings on welded steel hubs
  • 7 and 11 gauge hot rolled steel construction of base and supports
  • 14 gauge and heavier tube framing
  • Zero lift height loading, perimeter braced, eases loading and improves safety
  • 54" long x 1.5" wide, lab tested cinch straps for each cylinder
  • Powder painted for durability
  • Made in the USA using American steel and labor
  • Product Weight: 104 lbs
Product Description:
This gas cylinder hand truck holds up to two gas cylinders and rides on 10.5" diameter pneumatic wheels. It is designed to support up to 1,000 lbs. The dolly holds cylinders up to 12" diameter. Triple handle design helps control the high center of gravity created by the extensive structural framing, which exists to make these units safe when lifted by hoist rigs. It gives the operator both high and low hand position, critical for safe handling of heavy tall loads. Construction is heavy 11 gauge HR Steel with 3/16 inch thick steel supports, 3/8 inch thick hoist plates and round steel tube. Cylinders can be secured with included heavy polypropylene straps and steel cinch buckles. There are two straps per cylinder. Unit is powder coated for durability and fully welded. The product is made in the U.S.A. using American steel and labor. This model includes a cylinder locking post system, developed for the US Navy, which clamps cylinders in place at any angle from upright to full 90 degree rotation. The combination of locking post and straps for each cylinder creates the safest lift system available anywhere. Product Dimensions (WxDxH): 32" x 20" x 71". MPN: 35024 (previously G-3552)
