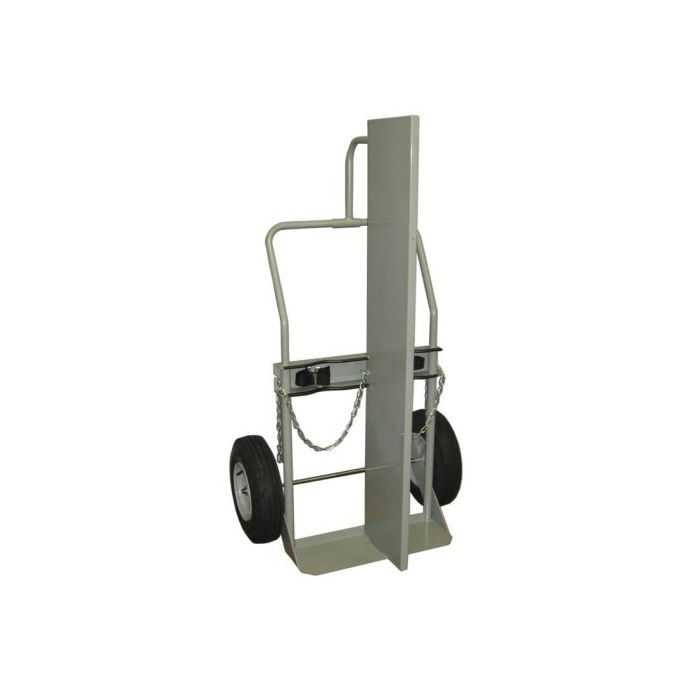

2 Cylinders - Firewall - Heavy Duty - Welding Cart

(Model #HT3901FS)
Status: Built to order
Shipping: Ships 10-20 business days from order date. You will be sent a tracking # upon shipment.
Welding cart capacity: 2 cylinders
Cylinder diameters supported: Up to 12.5" (fuel) & 10" (oxygen)
Weight capacity: 1,000 lbs
Welding cart dimensions: 35"w x 24"d x 60"h
Call 877-805-8650 with inquiries or to order by phone.
Torch Cart Features:
  • 16" diameter four-ply fully pneumatic speed rated wheels
  • 1" thick Marinite I™ lab certified fire barrier material encased in steel plate shell
  • UFC, NFPA, CGA, & OSHA compliant
  • Dual ball bearings on welded steel hubs
  • 7 and 11 gauge hot rolled steel construction of base and supports
  • Gas torch cart built of 14 gauge and heavier tube framing
  • Zero lift height loading, perimeter braced, eases loading and improves safety
  • 54" long x 1.5" wide, lab tested cinch straps for each cylinder
  • Powder painted for durability
  • Made in the USA using American steel and labor
  • Product Weight: 131 lbs
Product Description:
This gas cylinder welding cart holds up to two gas cylinders and rides on 16" diameter pneumatic speed rated wheels. It is designed to support up to 1,000 lbs. This model allows storage of fuel and oxygen cylinders in compliance with OSHA standard 1910.253 (b)(4)(iii) and NFPA 55- regulations using Marinite I™ one hour rated fire barrier material. The welding cart holds two cylinders up to 10.5 and 13 inch diameter. Its three point push handle greatly enhances safety and control for top heavy loads. Cylinders can be secured with included heavy polypropylene straps and steel cinch buckles. There are two straps per cylinder. The fully welded gas torch cart is exterior grade powder coated for durability. The product is made in the U.S.A. using American steel and labor. Gas Welding Cart (WxDxH): 35" x 24" x 60" . MPN: 35040 (previously G-3901)
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.

More Views

  • 2 Cylinders - Firewall - Heavy Duty - Welding Cart
