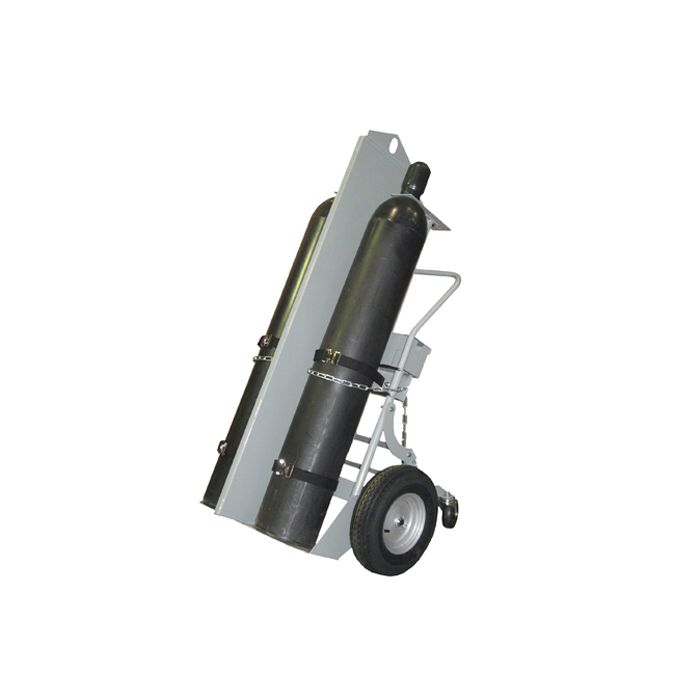

2 Cylinders - Firewall - Hoist Hook - Rear Casters - Heavy Duty - Welding Cart

(Model #HT3993FS)
Status: Built to order
Shipping: Ships 10-20 business days from order date. You will be sent a tracking # upon shipment.
Welding cart capacity: 2 cylinders
Cylinder diameters supported: Up to 12.5" (fuel) & 10" (oxygen)
Weight capacity: 1,000 lbs
Welding cart dimensions: 35"w x 24"d x 64"h
Call 877-805-8650 with inquiries or to order by phone.
Firewall Welding Cart Features:
  • Hook attachment for transport with hoist rigs
  • Clamping posts to secure cylinders at any angle
  • 16" diameter four-ply fully pneumatic speed rated wheels
  • 1" thick Marinite I™ lab certified fire barrier material encased in steel plate shell
  • 5" diameter rear casters
  • Includes locking lid tool tray to hold torch/tools
  • UFC, NFPA, CGA, & OSHA compliant
  • Dual ball bearings on welded steel hubs
  • 7 and 11 gauge hot rolled steel construction of base and supports
  • Welding cart with firewall has 14 gauge and heavier tube framing
  • Zero lift height loading, perimeter braced, eases loading and improves safety
  • 54" long x 1.5" wide, lab tested cinch straps for each cylinder
  • Powder painted for durability
  • Made in the USA using American steel and labor
  • Product Weight: 208 lbs
Product Description:
This welding cylinder cart holds up to two gas cylinders and rides on 16" diameter pneumatic speed rated wheels. It is designed to support up to 1,000 lbs. This welding torch cart allows storage of fuel and oxygen cylinders in compliance with OSHA standard 1910.253 (b)(4)(iii) and NFPA 55- regulations using Marinite I™ one hour rated fire barrier material. Rear caster assembly uses 5" diameter casters. The cylinder torch cart holds two cylinders up to 10 and 12.5 inch diameter. Triple handle design helps control the high center of gravity created by the extensive structural framing, which exists to make these units safe when lifted by hoist rigs. It gives the operator both high and low hand position, critical for safe handling of heavy tall loads. Construction is heavy 11 gauge HR Steel with 3/16 inch thick steel supports, 3/8 inch thick hoist plates and round steel tube. Cylinders can be secured with included heavy polypropylene straps and steel cinch buckles. There are two straps per cylinder. Firewall cart is powder coated for durability and fully welded. The product is made in the U.S.A. using American steel and labor. This gas torch cart includes a cylinder locking post system, developed for the US Navy, which clamps cylinders in place at any angle from upright to full 90 degree rotation. The combination of locking post and straps for each cylinder creates the safest lift system available anywhere. Gas welding cart includes a tray to hold torch and/or tools. Torch Cart Dimensions (WxDxH): 35" x 24" x 64". MPN: 35052 (previously G-3993)
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
