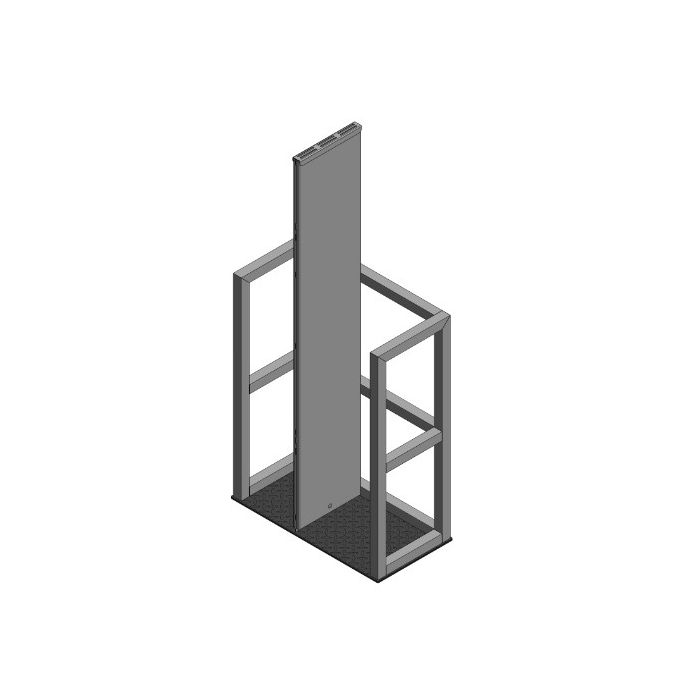

2 Cylinders - Firewall - Gas Cylinder Rack
In stock
Model #
GRCR500FWSC
$1,090.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 4-5 weeks from order date. You will be sent a tracking # upon shipment.
Cylinder capacity: 2
Cylinder diameters supported: One 9.5" & one 12.5"
Weight Capacity: 1,000 lbs
Cylinder diameters supported: One 9.5" & one 12.5"
Weight Capacity: 1,000 lbs
Cylinder rack dimensions:
27"w x 13.5"d x 60"h
Cylinder Storage Rack Features:
- Fully welded 1.5" square steel tubing
- Holds up to 2 cylinders up to 9.5" & 12.5" in diameter
- Firewall (1-hour rated) separates the two sides
- 3/16" steel baseplate (24"Wx13"D)
- One 1/4" thick steel perma-clamp
- Finished with black paint
- Industrial and commercial use
- Made in the USA
- Product weight: 120 lbs
Description:
This gas cylinder rack is for the storage of up to two gas cylinders with firewall separation. The firewall allows storage of fuel (eg acetylene) and oxygen cylinders in compliance with OSHA standard 1910.253 (b)(4)(iii) and NFPA 55-7.1.6.2.1 regulations with 1-hour fire barrier material. The firewall consists of two pieces of 14 gauge sheet steel with a baffle in between all welded together. The cylinder rack surrounds the cylinder with 1.5" steel tubing (14 gauge), which is painted black. There is a 3/16" steel base plate that is 24"Wx13"D. The rack can handle one cylinder up to 9.5 inch diameter and one up to 12.5 inch diameter. Includes one 1/4" thick steel perma-clamp to secure cylinder in rack. This product is made in the USA. Cylinders not included. Product dimensions (WxDxH): 27" x 13.5" x 60".
This gas cylinder rack is for the storage of up to two gas cylinders with firewall separation. The firewall allows storage of fuel (eg acetylene) and oxygen cylinders in compliance with OSHA standard 1910.253 (b)(4)(iii) and NFPA 55-7.1.6.2.1 regulations with 1-hour fire barrier material. The firewall consists of two pieces of 14 gauge sheet steel with a baffle in between all welded together. The cylinder rack surrounds the cylinder with 1.5" steel tubing (14 gauge), which is painted black. There is a 3/16" steel base plate that is 24"Wx13"D. The rack can handle one cylinder up to 9.5 inch diameter and one up to 12.5 inch diameter. Includes one 1/4" thick steel perma-clamp to secure cylinder in rack. This product is made in the USA. Cylinders not included. Product dimensions (WxDxH): 27" x 13.5" x 60".
MPN: CR-500-FW
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
It is recommended that a site survey be completed by the authority having jurisdiction to determine the suitability of the rack at that location and to confirm all local regulations are being followed.
1 year warranty against manufacturing defects.
Ships fully assembled on a pallet by freight truck. Loading dock or forklift required for delivery. If neither are available please request liftgate delivery at time of order.
