2 Cylinders - Hoist Hook - Gas Cylinder Rack
In stock
Model #
GRCR550SC
$940.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 4-5 weeks from order date. You will be sent a tracking # upon shipment.
Cylinder capacity: 2
Cylinder diameters supported: Up to 12.5"
Weight Capacity: 1,000 lbs
Cylinder diameters supported: Up to 12.5"
Weight Capacity: 1,000 lbs
Cylinder rack dimensions:
27.5"w x 13.5"d x 62"h
Cylinder Storage Rack Features:
- Fully welded 1.5" square steel tubing
- Holds up to 2 cylinders up to 12.5" in diameter
- Hoist hook equipped
- 2 - 1/4" thick steel perma-clamps
- 3/16" steel baseplate (24"wx13"d)
- Finished with black powder paint
- Industrial and commercial use
- Made in the USA
- Product weight: 60 lbs
Description:

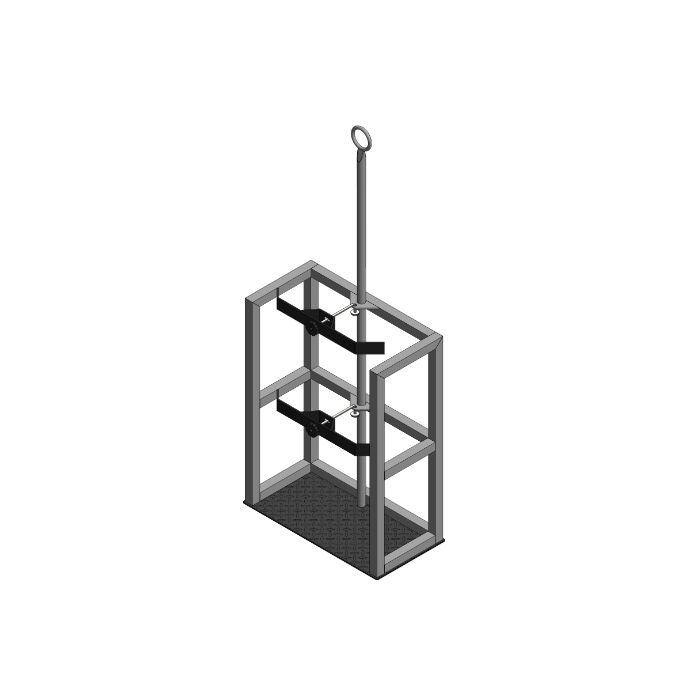

This gas cylinder rack is for the storage of up to two gas cylinders and has a hoist hook for lifting the unit. The cylinder rack surrounds the cylinders with 1.5" steel tubing (14 gauge), which is powder painted black. Includes two 1/4" steel perma-clamps to secure the cylinders on the rack. There is a 3/16" steel base plate that is 24"Wx13"D. The hoistable rack can handle cylinders up to the 12.5 inch standard diameter. Weight capacity 1,000 lbs. This product is made in the USA. Cylinders not included. Product dimensions (WxDxH): 27.5" x 13.5" x 62".
This gas cylinder rack is for the storage of up to two gas cylinders and has a hoist hook for lifting the unit. The cylinder rack surrounds the cylinders with 1.5" steel tubing (14 gauge), which is powder painted black. Includes two 1/4" steel perma-clamps to secure the cylinders on the rack. There is a 3/16" steel base plate that is 24"Wx13"D. The hoistable rack can handle cylinders up to the 12.5 inch standard diameter. Weight capacity 1,000 lbs. This product is made in the USA. Cylinders not included. Product dimensions (WxDxH): 27.5" x 13.5" x 62".
MPN: CR-550
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
It is recommended that a site survey be completed by the authority having jurisdiction to determine the suitability of the rack at that location and to confirm all local regulations are being followed.
1 year warranty against manufacturing defects.
