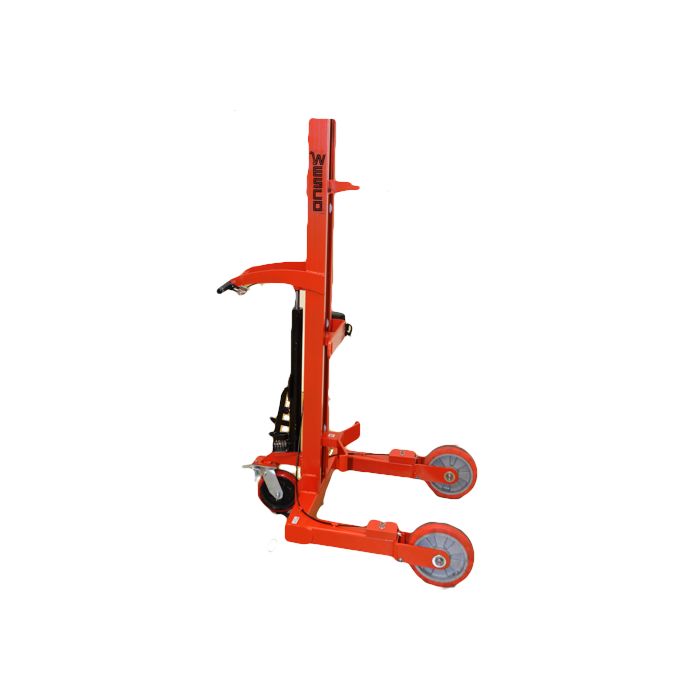

1 Cryogenic Tank (20" Dewar) - Hydraulic Pump - Hand Brake - Gas Cylinder Lift Truck
In stock
Model #
GC240251WC
$3,595.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 8-12 weeks from order date. Ships only within the United States and Canada. For international shipping options, please contact Customer Service. You will be sent a tracking # upon shipment.
Capacity: 1 cylinder
Weight capacity: 1,000 lbs
Cylinder diameters supported: Up to 20" (160, 180, 200 Liter)
Weight capacity: 1,000 lbs
Cylinder diameters supported: Up to 20" (160, 180, 200 Liter)
Cart dimensions:
29-3/4"w x 44-3/4"d x 66-1/4"h
Cart Features:
- Foot operated hydraulic pump to lift cylinder off ground
- Lifts tank from 54" (lowered hook) to 71"H (raised hook)
- Hand controlled brakes
- Made from heavy duty structural steel and Schedule 40 pipe
- Cylinder remains vertical during transport
- Two rigid 10"x2.5" polyurethane wheels and one 8"x2" caster with swivel lock
- 2" Ratchet tightening belt to secure cylinder
- Industrial, medical and commercial use
- Made in the USA
- Product weight: 140 lbs
1 Cryogenic Tank (20" Dewar) - Hydraulic Pump - Hand Brake - Gas Cylinder Lift Truck
Model #
GC240251WC
Description:
Transport large cryogenic tanks or liquid gas dewars (20" diameter, 160-200 Liter) with this three-wheel cart with hand brake. The steel hand truck includes a foot-operated hydraulic pump that lifts the cylinder off the ground. The lifting hook engages cylinder without operator hand contact. A ratchet tightening belt secures the cylinder to the cart. The cart keeps the cylinder vertical during transport and takes up less space than typical lay-back carts. It has two 10" polyurethane-tread wheels and one 8" non-marking crowned swivel caster with swivel lock. Brakes on the large 10" wheels can be activated by the operator on the hand grips to safely control the dewar. The dolly is built from heavy duty structural steel and Schedule 40 pipe frame. One year manufacturer's warranty on parts. Made in the USA. Cylinder not included.
MPN: 240251
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
1 year warranty against manufacturing defects.
Ships on a pallet by freight truck. Loading dock or forklift required for delivery. If neither are available please request liftgate delivery at time of order.
