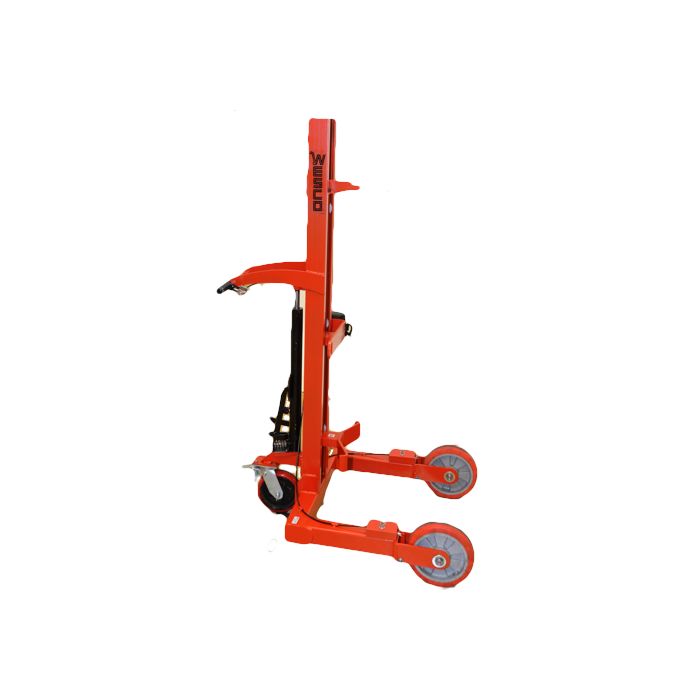

1 Cryogenic Tank (20" Dewar) - Hydraulic Pump - Gas Cylinder Lift Truck
In stock
Model #
GC240250WC
$3,255.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 8-12 weeks from order date. Ships only within the United States and Canada. For international shipping options, please contact Customer Service. You will be sent a tracking # upon shipment.
Capacity: 1 cylinder
Weight capacity: 1,000 lbs
Cylinder diameters supported: Maximum of 20" (160, 180, 200 Liter)
Weight capacity: 1,000 lbs
Cylinder diameters supported: Maximum of 20" (160, 180, 200 Liter)
Cart dimensions:
29-3/4"w x 44-3/4"d x 66-1/4"h
Cart Features:
- Foot operated hydraulic pump to lift cylinder off ground
- Lifts tank from 54" (lowered hook) to 71"H (raised hook)
- Made from heavy duty structural steel and schedule 40 pipe
- Cylinder remains vertical during transport
- Two 10" wheels and one 8" wheel with swivel lock
- 2" polyester web ratchet tightening belt to secure cylinder
- Industrial, medical and commercial use
- Made in the USA
- Product weight: 130 lbs
Description:
Transport large liquid dewar or cryogenic cylinders (20" diameter, 160-200 Liter) with this hydraulic lifting 3 wheel cart. Foot operated hydraulic pump lifts cylinder off of ground. The lifting hook engages cylinder without operator hand contact. A ratchet tightening polyester web belt secures the cylinder to the cart. The cart keeps the cylinder vertical during transport and takes up less space than typical lay-back carts. It has two 10" polyurethane-tread wheels and one 8" non-marking crowned swivel caster with swivel lock. The dolly is built from heavy duty structural steel and schedule 40 pipe frame. One year manufacturer's warranty on parts. Made in the USA.
MPN: 240250
