9 Cylinders - Large Oxygen & Medical Gases (H Tanks) - Fire Lined - Manual Close - Cylinder Storage Cabinet
In stock
Model #
CBMG106HFLSA
$2,440.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 4-6 weeks from order date. You will be sent a tracking # upon shipment.
Capacity: 9
Supported cylinder sizes: H (9.25" diameter up to 60" tall)
Doors: 2 manual doors
Supported cylinder sizes: H (9.25" diameter up to 60" tall)
Doors: 2 manual doors
Cabinet dimensions:
34"w x 34"d x 65"h
Note: Self-closing doors may be required in states that follow an adopted fire code such as the International Fire Code (IFC) or NFPA 1 Uniform Fire Code. Contact local authority having jurisdiction for specific requirements.
Oxygen Storage Cabinet Features:
- 2 doors - manual close
- Fire-lined walls provide estimated 60 Minute fire protection
- NFPA Code 30, 99, 101 and OSHA compliant
- Cylinder dividers inside
- Lockable flush-mounted paddle handle, includes 2 keys
- Doors have full-length piano hinges
- All-welded, galvannealed steel construction
- Finished in 2 coats of OSHA Safety Green color urethane paint
- 18-gauge steel for durability, longevity and fire safety
- Double-walled construction shields cylinders from heat, sparks and flame
- Two 2" vents with covers
- Four adjustable leveling feet provide a sturdy base
- English and Spanish warning labels
- Includes manufacturer's 15-year warranty
- Product weight: 436 lbs
9 Cylinders - Large Oxygen & Medical Gases (H Tanks) - Fire Lined - Manual Close - Cylinder Storage Cabinet
Model #
CBMG106HFLSA
Description:

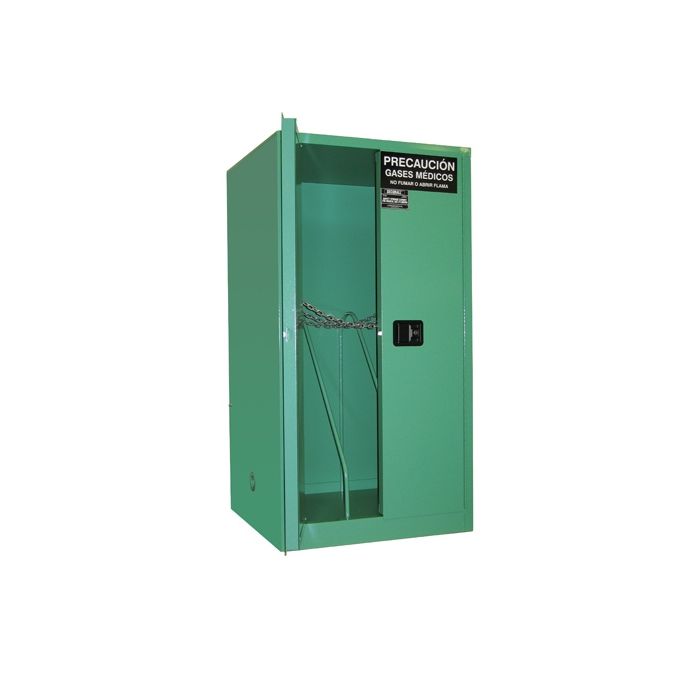

This oxygen gas cylinder storage cabinet is designed to hold up to 9 size H cylinders (9.25" diameter up to 60" tall). This type of cabinet is used in hospitals and nursing homes to allow the safe, compliant storage of full medical gases. It has a double-walled, heavy-gauge construction with gypsum particle board lining to provide an estimated 60 minutes of fire protection to the cylinders from heat, sparks and flame. The inside has dividers to keep the cylinders upright in the storage compartment. There are two 2" vents with covers. One is located on the side near the bottom and the other is on the opposite side near the top to provide cross ventilation. The doors have a lockable, flush-mounted paddle handle and use full length piano hinges. Two keys are included. Four adjustable zinc plated leveling legs allow the cabinet to be leveled on uneven surfaces. The cabinet is coated in OSHA Safety Green urethane paint for full cylinder storage indoors. Other cabinet paint colors available: white for partial cylinder storage and red for empty cylinder storage. Outdoor Weatherproof package upgrade option also available. Contact USA Safety customer service for more information.
This oxygen gas cylinder storage cabinet is designed to hold up to 9 size H cylinders (9.25" diameter up to 60" tall). This type of cabinet is used in hospitals and nursing homes to allow the safe, compliant storage of full medical gases. It has a double-walled, heavy-gauge construction with gypsum particle board lining to provide an estimated 60 minutes of fire protection to the cylinders from heat, sparks and flame. The inside has dividers to keep the cylinders upright in the storage compartment. There are two 2" vents with covers. One is located on the side near the bottom and the other is on the opposite side near the top to provide cross ventilation. The doors have a lockable, flush-mounted paddle handle and use full length piano hinges. Two keys are included. Four adjustable zinc plated leveling legs allow the cabinet to be leveled on uneven surfaces. The cabinet is coated in OSHA Safety Green urethane paint for full cylinder storage indoors. Other cabinet paint colors available: white for partial cylinder storage and red for empty cylinder storage. Outdoor Weatherproof package upgrade option also available. Contact USA Safety customer service for more information.
MPN: MG106HFL
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
The fully assembled cabinet is freestanding and has four adjustable zinc plated leveling legs to level it on the floor surface.
Includes manufacturer's 15 year structural limited warranty against defects in materials and workmanship from the date of purchase.
Ships fully assembled on a pallet by freight truck. Loading dock or forklift required for delivery. If neither are available please request liftgate delivery at time of order.
