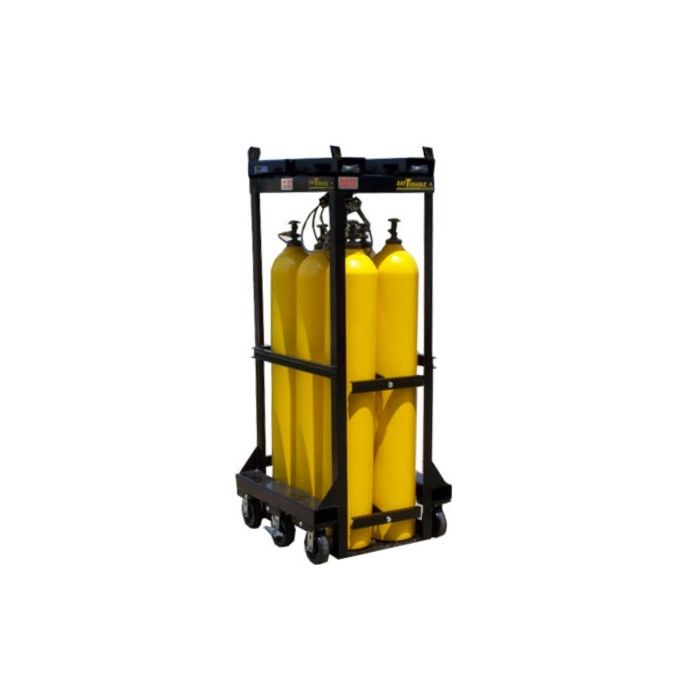

6 Cylinders - Hoist Hook & Lifting Eyes - Forkliftable - Low Profile - Cylinder Cradle Cart
In stock
Model #
CCC66CLPSC
$1,495.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 4-6 weeks from order date. You will be sent a tracking # upon shipment.
Cylinder capacity: 6
Supported cylinder sizes: 9.5" diameter (200-300 cu ft)
Weight capacity: 1,950 lbs
Supported cylinder sizes: 9.5" diameter (200-300 cu ft)
Weight capacity: 1,950 lbs
Cart dimensions:
34"w x 32"d x 78"h
Tank Cradle Cart Features:
- Holds up to 6 cylinders of up to 9.5" in diameter
- Security bars bolt to frame to secure cylinders
- Low-profile platform design
- Fiberglass and nylon fixed caster wheels
- 4 lifting eyes and center hoist hook
- Lower two-way forklift pockets
- 3/16" steel floor plate
- Finished with 5 stage powder coat, black
- Industrial and commercial use
- Outdoor or indoor use
- Made in the USA
- Product weight: 320 lbs
6 Cylinders - Hoist Hook & Lifting Eyes - Forkliftable - Low Profile - Cylinder Cradle Cart
Model #
CCC66CLPSC
Description:
This gas cylinder cradle bank cart is for the storage and transportation of up to six gas cylinders. Its low cylinder platform makes it easier to load and unload bottles. The top includes lifting eyes (3/8" gauge plate) on each corner for 4-point lifting and a single hoist hook (3/4" round bar) at the center that can be used with a crane for 1-point lifting. Additionally, there are side-mounted lower forklift pockets (5.5"Wx2.5"H, 7 gauge) located above the wheels. The fixed caster wheels are 5" and 6" made from fiberglass/nylon. Tanks are secured in the unit with steel security bars that attach with 5/8" bolts. There is a 3/16" (7 gauge) steel base plate. This rack can handle cylinders up to the 9.5 inch standard diameter. The cylinder cradle is powder coated black using a 5 stage process. Weight capacity 2,950 lbs. Includes manufacturer's vinyl ID tag that provides the load capacity and unit weight. Outdoor or indoor use. This product is made in the USA. Cylinders not included, manifold not included but available for separate purchase as installed option. Product dimensions (WxDxH): 34" x 32" x 78".
This gas cylinder cradle bank cart is for the storage and transportation of up to six gas cylinders. Its low cylinder platform makes it easier to load and unload bottles. The top includes lifting eyes (3/8" gauge plate) on each corner for 4-point lifting and a single hoist hook (3/4" round bar) at the center that can be used with a crane for 1-point lifting. Additionally, there are side-mounted lower forklift pockets (5.5"Wx2.5"H, 7 gauge) located above the wheels. The fixed caster wheels are 5" and 6" made from fiberglass/nylon. Tanks are secured in the unit with steel security bars that attach with 5/8" bolts. There is a 3/16" (7 gauge) steel base plate. This rack can handle cylinders up to the 9.5 inch standard diameter. The cylinder cradle is powder coated black using a 5 stage process. Weight capacity 2,950 lbs. Includes manufacturer's vinyl ID tag that provides the load capacity and unit weight. Outdoor or indoor use. This product is made in the USA. Cylinders not included, manifold not included but available for separate purchase as installed option. Product dimensions (WxDxH): 34" x 32" x 78".
MPN: C6-6CLP
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
It is recommended that a site survey be completed by the authority having jurisdiction to determine the suitability of the rack at that location and to confirm all local regulations are being followed.
1 year warranty against manufacturing defects.
Ships fully assembled on a pallet by freight truck. Loading dock or forklift required for delivery. If neither are available please request liftgate delivery at time of order.
