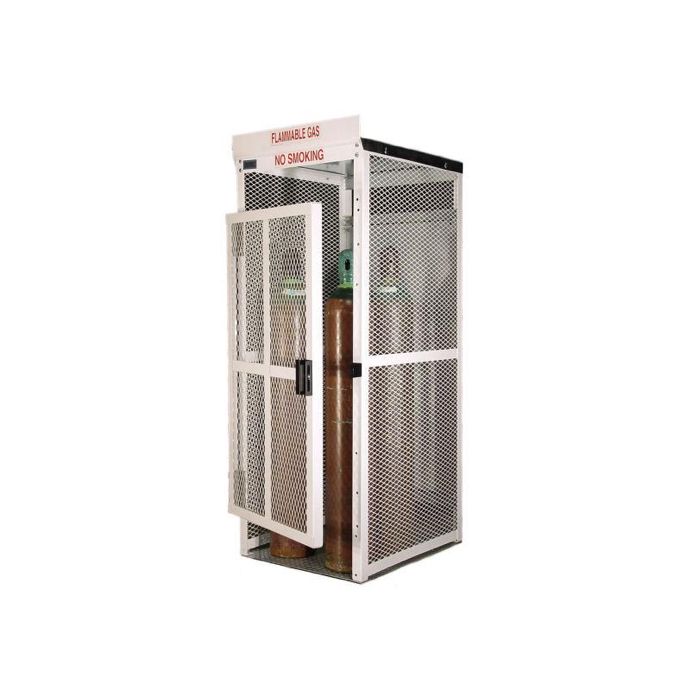

11 Cylinders - Large Tanks - Outdoor - Vertical Storage - Steel & Mesh - Gas Cylinder Cage

(Model #CB11203SAAM)
Status: Built to order
Shipping: Ships 5-10 business days from order date. You will be sent a tracking # upon shipment.
Cabinet capacity: Up to 11 cylinders of 9" diameter or equivalent combination
Cabinet dimensions: 30"w x 38"d x 82"h
Call 877-805-8650 with inquiries or to order by phone.
Gas Cylinder Locker Features:
  • Gas cylinder locker meets OSHA 1910 and NFPA regulations
  • Lockable door with heavy duty lock receiver (lock not included)
  • Stainless steel hinges
  • Mesh sides and door allow visibility into cabinet
  • Top and back are solid galvanized steel
  • Aluminum diamond floor plate
  • Powder coated with outdoor grade paint for extra durability
  • Safety signage in large red letters
  • Pre-drilled holes (13/16") in the four corners of the floor plate for anchoring
  • Product bolted together (not fully welded) so can be knocked down
  • Ships assembled
  • Optional safety chain available for purchase separately
  • Product Weight: 220 lbs
Product Description:
This gas cylinder cabinet holds up to 11 cylinders (9" diameter) in vertical position. The tank cabinet features steel galvanized screen that is coated with hi-build electrostatic powder coating. The top and back of the cabinet is made from solid galvanized steel panels. The door on this unit includes tamper resistant stainless steel hinges and a heavy duty lock receiver (lock is not included). Also comes with bright aluminum diamond floor plate and "Flammable Gas - No Smoking" signage. There are pre-drilled holes in the bottom corners of the cabinet for anchoring. Meets OSHA and NFPA requirements for cylinder storage. Ships assembled. Optional safety chain set available for purchase separately. Cabinet dimensions (WxDxH): External: 30" x 38" x 82"
Internal: 30" x 35" x 75"; 26" wide at the door opening MPN: HP11203SA
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
