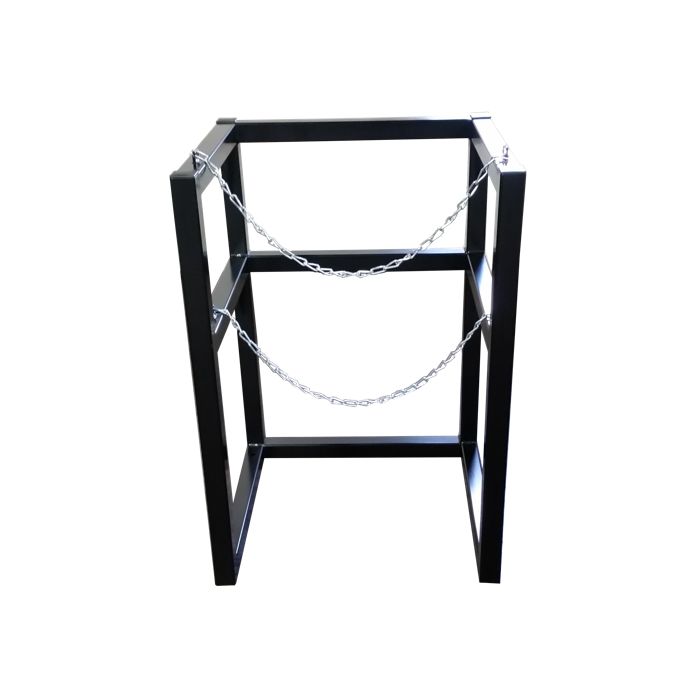

1 Cryogenic Tank (22" Dewar) - Liquid Gas Cylinder Rack
In stock
Model #
BR1X1CRYO22
$750.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 2-3 weeks from order date. You will be sent a tracking # upon shipment.
Cylinder capacity: 1
Cylinder diameters supported: 18"-22"
Cylinder diameters supported: 18"-22"
Cylinder rack dimensions:
28"w x 26"d x 40"h
Cylinder Storage Rack Features:
- Meets USGS high seismic hazard zone requirements when installed properly
- OSHA, NFP1, NFPA 55 and CGA compliant when used properly
- Typically used for cryogenic gases
- 2 levels of welded and steel chains
- Snaps to secure cylinder
- 2" square steel tube continuously seam welded, 0.125" thick surrounds cylinders
- 4 Pre-drilled 0.531" diameter floor mounting holes
- Anchor bolts (Model # ACITW5FS) available for purchase separately (not included)
- Tube sealed with exterior grade black powder-coat paint
- Indoor or outdoor bulk cylinder storage
- Industrial and commercial use
- Made in the USA
- Product weight: 130 lbs
Description:
The 22" model of this gas cylinder rack provides bulk and site-specific cylinder storage for gas cylinders 18 to 22 inches in diameter. It is typically used for cryogenic gases. From the STD Cryo series, this cylinder holder surrounds cylinders with two inch square steel tube that is 0.125 inch thick, which is continuously seam welded and sealed with exterior grade black powder-coat paint. There are two levels of welded steel chains with snaps welded onto the rack. The unit meets or exceeds OSHA, NFP1, NFPA 55, CGA, and USGS high seismic hazard zone requirements when used properly. This product is made in the USA. Product Dimensions (WxDxH): 28" x 26" x 40".
MPN:
35186 (previously STD-CRYO1)
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Secure rack to the ground/floor using the appropriate hardware for the material. Typical size bolt is 1/2" by 5 1/2" size. Each rack has pre-drilled 0.531" holes in each arm for mounting to ground. It is recommended that a site survey be completed by the authority having jurisdiction to determine the suitability of the barricade racks at that location and to confirm all local regulations are being followed.
1 year warranty against manufacturing defects.
Ships on a pallet by freight truck.
