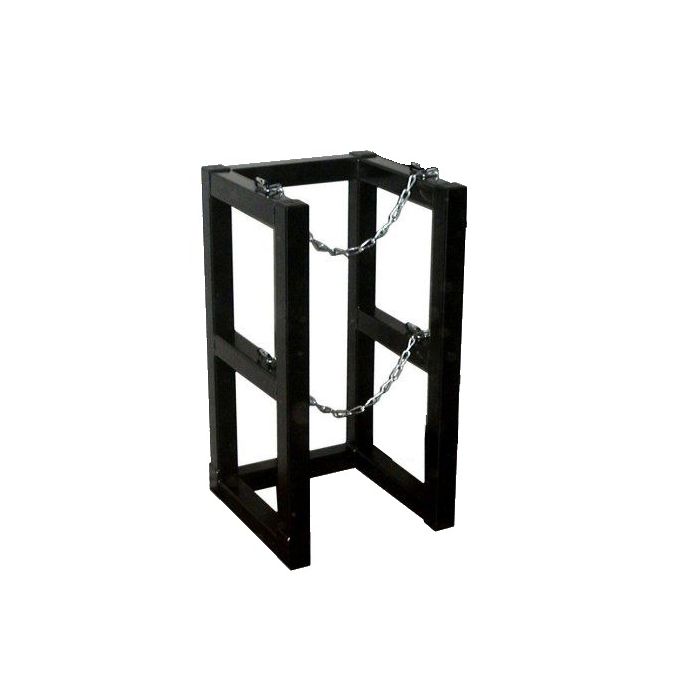

1 Cylinder (1x1) - Barricade - Gas Cylinder Rack
In stock
Model #
BR1X1FS
$595.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 2-3 weeks from order date. You will be sent a tracking # upon shipment.
Cylinder capacity: 1
Cylinder diameters supported: Up to 12"
Cylinder diameters supported: Up to 12"
Cylinder rack dimensions:
16"w x 16"d x 30"h
Cylinder Storage Rack Features:
- Meets USGS high seismic hazard zone requirements when installed properly
- OSHA, NFP1, NFPA 55 and CGA compliant when used properly
- 2" square steel tube continuously seam welded, 0.125" thick
- Two levels of welded steel chains (19" long each)
- 3 Pre-drilled 0.531" (14-mm) diameter floor mounting holes
- Anchor bolts (Model # ACITW5FS) available for purchase separately (not included)
- Sealed with exterior grade black powder-coat paint
- Indoor or outdoor bulk cylinder storage
- Industrial and commercial use
- Made in the USA
- Product weight: 58 lbs
Description:
This gas cylinder rack holds one cylinder and is recommended for indoor or outdoor bulk cylinder storage. Barricade cylinder racks surround cylinders with two inch square steel tube that is 0.125 inch thick, which is continuously seam-welded and sealed with exterior grade Black powder-coat paint. There are two levels of welded steel chains (19" long each) with snaps, which can handle cylinders up to the 12 inch standard diameter. Tops are smoothed and fitted with high-density polyethylene (HDPE) caps to reduce corrosion and help prevent injury. Pre-drilled 0.531 in (14 mm) diameter floor mounting holes in the lower tube structure simplify anchoring. The gas cylinder rack meets or exceeds OSHA, NFP1, NFPA 55, CGA, and USGS high seismic hazard zone requirements when used properly. This product is made in the USA. Product dimensions (WxDxH): 16" x 16" x 30".
This gas cylinder rack holds one cylinder and is recommended for indoor or outdoor bulk cylinder storage. Barricade cylinder racks surround cylinders with two inch square steel tube that is 0.125 inch thick, which is continuously seam-welded and sealed with exterior grade Black powder-coat paint. There are two levels of welded steel chains (19" long each) with snaps, which can handle cylinders up to the 12 inch standard diameter. Tops are smoothed and fitted with high-density polyethylene (HDPE) caps to reduce corrosion and help prevent injury. Pre-drilled 0.531 in (14 mm) diameter floor mounting holes in the lower tube structure simplify anchoring. The gas cylinder rack meets or exceeds OSHA, NFP1, NFPA 55, CGA, and USGS high seismic hazard zone requirements when used properly. This product is made in the USA. Product dimensions (WxDxH): 16" x 16" x 30".
USA Ref #: 350802 (previously GSTD-1X1)
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Secure rack to the ground/floor using the appropriate hardware for the material. Typical size bolt is 1/2" by 5 1/2" size. Each rack has pre-drilled 0.531" holes in each arm for mounting to ground. It is recommended that a site survey be completed by the authority having jurisdiction to determine the suitability of the barricade racks at that location and to confirm all local regulations are being followed.
1-year warranty against manufacturing defects.
Ships on a pallet by freight truck.
