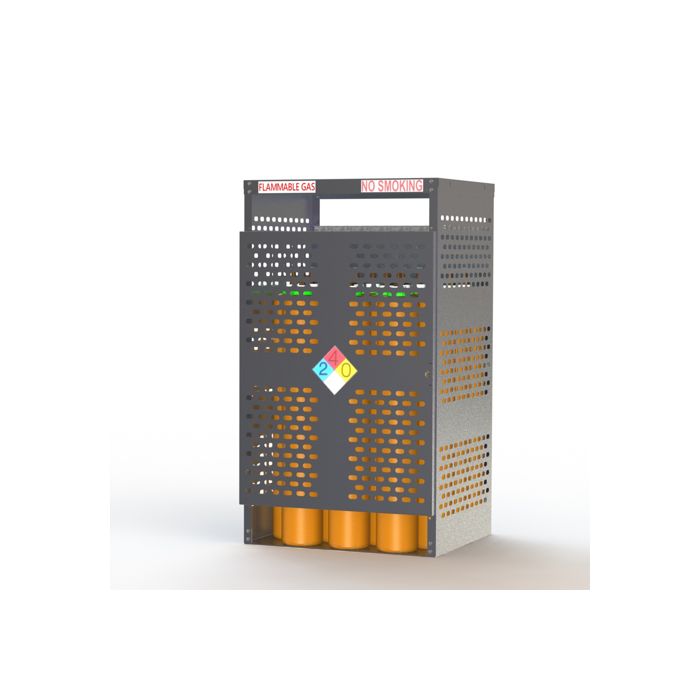

15 Cylinders - Large Tanks - Outdoor - Vertical Storage - Laser Cut Aluminum - Gas Cylinder Cage
In stock
Model #
CBAL15303SAAM
$1,260.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 1-2 weeks from order date. You will be sent a tracking # upon shipment.
Cabinet capacity: Up to 15 cylinders of 9" diameter, 5 - 100 lb propane cylinders or equivalent combination
Cabinet dimensions:
44"w x 38"d x 78"h
Gas Cylinder Locker Features:
- Gas cylinder locker meets OSHA 1910 and NFPA regulations
- Lockable door with heavy duty lock receiver (lock not included)
- Stainless steel hinges
- Reversible swing door
- Laser cut aluminum sides and door allow visibility into cabinet
- Top and back are solid aluminum panels
- Pre-drilled holes (1/2") in floor plate for anchoring
- 3/16" Aluminum diamond floor plate
- Flammable signage in large red letters
- Product panels bolt together and can be disassembled
- Ships assembled
- Made in the USA
- A safety chain set (Model # CB001AM) can be added to this product (optional)
- Product weight: 122 lbs
15 Cylinders - Large Tanks - Outdoor - Vertical Storage - Laser Cut Aluminum - Gas Cylinder Cage
Model #
CBAL15303SAAM
Description:
This gas cylinder cabinet holds up to 15 cylinders (9" diameter) or five 100 lb propane cylinders in vertical position. The cabinet features heavy laser cut aluminum door and side panels. The top and back of the cabinet is made from solid aluminum panels. The door swings on tamper resistant stainless steel hinges and has a heavy duty lock receiver (lock is not included). There is "Flammable - No Smoking" signage on the front of the cabinet. Meets OSHA and NFPA requirements for cylinder storage. There are four 1/2" pre-drilled holes in the 3/16" thick bright aluminum diamond plate floor of the cabinet available for anchoring. Ships assembled. This product is made in the USA. Optional safety chain set available for purchase separately. Cabinet external dimensions (WxDxH): 44" x 38" x 78", Estimated Internal Dimensions: 43" x 34" x 75". The space between the top of the cabinet and back/door is 7 3/4". The space between back/door and the ground is 8 3/4".
MPN:
A-HP15303SA
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Place cabinet on level surface. Cabinet frame bolts (9/16") can be loosened to shift the panels if needed to level the cabinet to the ground surface or square up the door. The cabinet floor plate has a pre-drilled 1/2" holes that can be used to anchor the cabinet if required.
1 year warranty against manufacturing defects.
Ships fully assembled on a pallet by freight truck. Loading dock or forklift required for delivery. If neither are available please request liftgate delivery at time of order.
