1 Cryo Tank (30" Dewar) - Lifting Eyes - Forklift Base - Bolt-On Security Bars - Cylinder Transport Cage
In stock
Model #
GPPF450LSC
$2,950.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 4-5 weeks from order date. You will be sent a tracking # upon shipment.
Cylinder capacity: 1
Cylinder diameters supported: Up to 30" dewar (450L)
Weight Capacity: 2,800 lbs
Cylinder diameters supported: Up to 30" dewar (450L)
Weight Capacity: 2,800 lbs
Cylinder pallet dimensions:
External:
37"w
x
37"d x 86"h
Floor space (approx): 32"w x 32"d
Floor space (approx): 32"w x 32"d
Cylinder Storage pallet Features:
- 4 lifting eyes
- 4-sided forklift entry base
- Security bars bolt to frame to secure cylinders
- 3"x3/16" and 2.5"x3/16" square structural tubing
- Finished with 5 stage powder coat, black
- Industrial and commercial use
- Made in the USA
- Product weight: 384 lbs
1 Cryo Tank (30" Dewar) - Lifting Eyes - Forklift Base - Bolt-On Security Bars - Cylinder Transport Cage
Model #
GPPF450LSC
Description:

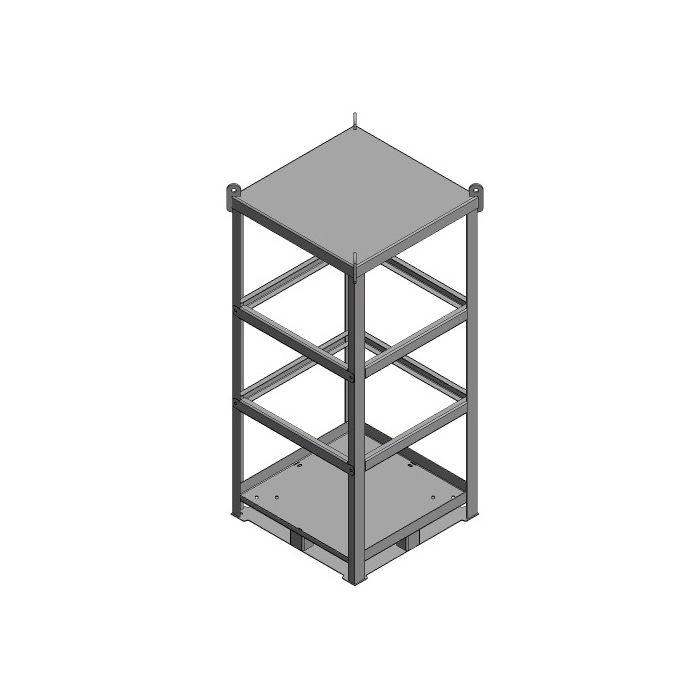

This cryogenic hoist cage is for the storage and transportation of one 450-liter dewar. This cage is constructed with 3" x 3/16" and 2.5" x 3/16" structural tubing. The unit is designed to be bolted together with 5/8 inch x 4.5 inch bolts. The pallet frame on the unit is designed to be transported with a forklift or pallet jack. There are also lifting eyes on top for movement by crane. It is finished with a 5 stage black powder coat. The pallet floor space is approximately 32"Wx32"D. Weight capacity 2,800 lbs. Includes manufacturer's vinyl ID tag that provides the load capacity and unit weight. This product is made in the USA. Product dimensions (WxDxH): 37" x 37" x 86".
This cryogenic hoist cage is for the storage and transportation of one 450-liter dewar. This cage is constructed with 3" x 3/16" and 2.5" x 3/16" structural tubing. The unit is designed to be bolted together with 5/8 inch x 4.5 inch bolts. The pallet frame on the unit is designed to be transported with a forklift or pallet jack. There are also lifting eyes on top for movement by crane. It is finished with a 5 stage black powder coat. The pallet floor space is approximately 32"Wx32"D. Weight capacity 2,800 lbs. Includes manufacturer's vinyl ID tag that provides the load capacity and unit weight. This product is made in the USA. Product dimensions (WxDxH): 37" x 37" x 86".
MPN: PF-450L
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
It is recommended that a site survey be completed by the authority having jurisdiction to determine the suitability of the rack at that location and to confirm all local regulations are being followed.
1 year warranty against manufacturing defects.
