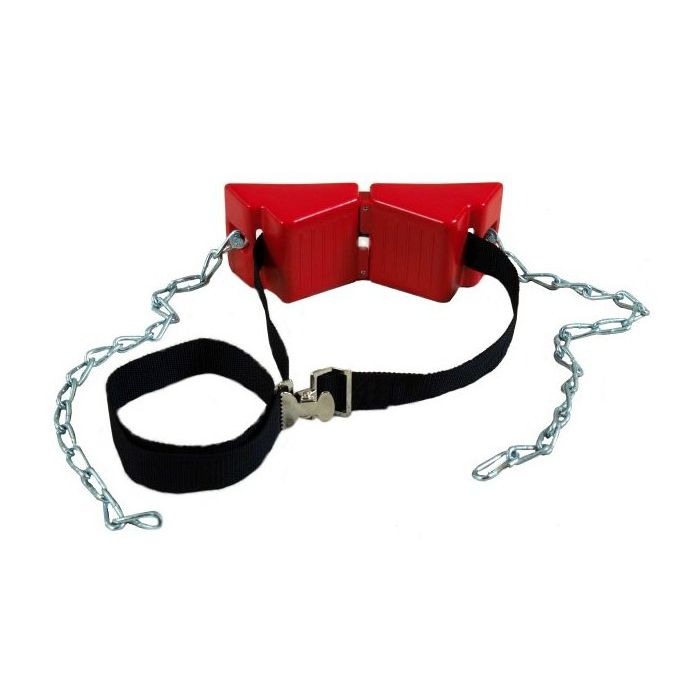

1 Cylinder - Wall Mount - Adjustable - Gas Cylinder Bracket
In stock
Model #
GB110FS
$45.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
In stock
Shipping:
Ships 1-3 business days from order date. You will be sent a tracking # upon shipment.
Cylinder bracket capacity: 1 cylinder
Diameters supported: 4"-12"
Diameters supported: 4"-12"
Cylinder bracket dimensions:
9"w x 2"d x 4"h
Product Features:
- OSHA, NFPA (UFC) & CGA compliant
- Cylinder bracket mounts to wall permanently using fasteners
- Gas cylinder bracket molded from reinforced polypropylene
- Support acetylene, argon, butane, carbon dioxide (CO2), helium, hydrogen, nitrogen and other cylinders
- Includes polypropylene strap that is 1.5" wide by 54" long with steel cinch buckle
- Security chain set included
- Cylinder bracket ships parcel or freight for larger quantities
- Made in the USA
- Product weight: 3 lbs
Description:
This gas cylinder bracket is molded from reinforced polypropylene and can be adjusted to snugly support any gas cylinder from 4 to 12 inches in diameter. The cylinder bracket is first set to designated cylinder diameter using recessed set screws that lock in the width position. Safely support gas cylinders, including acetylene, argon, butane, carbon dioxide (CO2), helium, hydrogen and nitrogen cylinders. The cylinder support permanently mounts to a wall using fasteners. Includes both cylinder strap and security chain sets. The strap is made of 1.5-inch-wide by 54-inch-long woven polypropylene with steel cinch buckle. This cylinder bracket is made in the USA.
Gas cylinder bracket dimensions (WxDxH): 9" x 2" x 4".
Cylinder Bracket - GB110FS
This gas cylinder bracket is molded from reinforced polypropylene and can be adjusted to snugly support any gas cylinder from 4 to 12 inches in diameter. The cylinder bracket is first set to designated cylinder diameter using recessed set screws that lock in the width position. Safely support gas cylinders, including acetylene, argon, butane, carbon dioxide (CO2), helium, hydrogen and nitrogen cylinders. The cylinder support permanently mounts to a wall using fasteners. Includes both cylinder strap and security chain sets. The strap is made of 1.5-inch-wide by 54-inch-long woven polypropylene with steel cinch buckle. This cylinder bracket is made in the USA.
Gas cylinder bracket dimensions (WxDxH): 9" x 2" x 4".
MPN: 35256 (previously G-110)
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Adjust bracket width by loosening the set screws and moving bracket halves to desired size then re-tighten set screws (do not over tighten). Locate the strap and buckle and thread into bracket before installation. Chains attach with the mounting screws. Use 5/16" (9mm) mounting hardware. Select the appropriate fastener type based on the wall construction. For concrete and concrete block use at least 2.5" long concrete anchor bolts. For wood walls use wood screws and flat washer. If mounting to drywall use appropriate size anchors. Requires 2 fasteners to attach to the wall (not included).
1 year warranty against manufacturing defects.
Small quantities will ship parcel. Larger quantities (>150 lbs) will ship freight.
