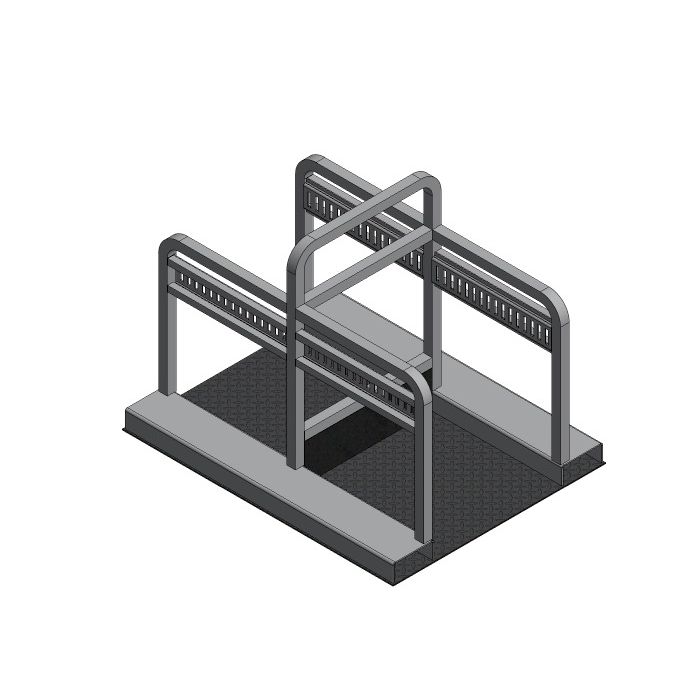

8 Cylinders - Caddy Gas Cylinder Pallet
In stock
Model #
GPCD8SC
$740.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 4-5 weeks from order date. You will be sent a tracking # upon shipment.
Cylinder capacity: 8
Cylinder diameters supported: Up to 9.5" (200-300 cu ft)
Weight Capacity: 1,400 lbs
Cylinder diameters supported: Up to 9.5" (200-300 cu ft)
Weight Capacity: 1,400 lbs
Cylinder pallet dimensions:
External:
46.5"w
x
36.5"d x 35.5"h
Internal (usable floor space per side): 22"W x 22.5"D
Internal (usable floor space per side): 22"W x 22.5"D
Cylinder Storage Pallet Features:
- 2-sided forklift pockets
- E-Track strap compatible
- 14-gauge steel construction
- 7-gauge steel diamond-tread floor plate
- Holds up to 8 cylinders of up to 9.5" in diameter
- Finished with 5 stage powder coat, black
- Industrial and commercial use
- Made in the USA
- Product weight: 200 lbs
Description:
This gas cylinder pallet is for the storage and transportation of up to eight gas cylinders (two back-to-back sections that each hold 4 cylinders, divided by a rail). This pallet has two rails on the sides, in addition to the middle divider. The sides have E-Track strap (not included) compatible slots to secure the cylinders. The base plate is made from 7-gauge (3/16") diamond-tread steel and there are two-way forklift pockets (7"Wx2.5"H). It is finished with a 5 stage powder coat, black. The pallet floor space is approximately 22"Wx12.5"D. Can hold up to two 100 lb propane cylinders (15.5" diameter). Weight capacity 1,400 lbs. This product is made in the USA. Cylinders not included. Product dimensions (WxDxH): 46.5" x 36.5" x 35.5".
MPN: CD-8
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
It is recommended that a site survey be completed by the authority having jurisdiction to determine the suitability of the rack at that location and to confirm all local regulations are being followed.
1 year warranty against manufacturing defects.
