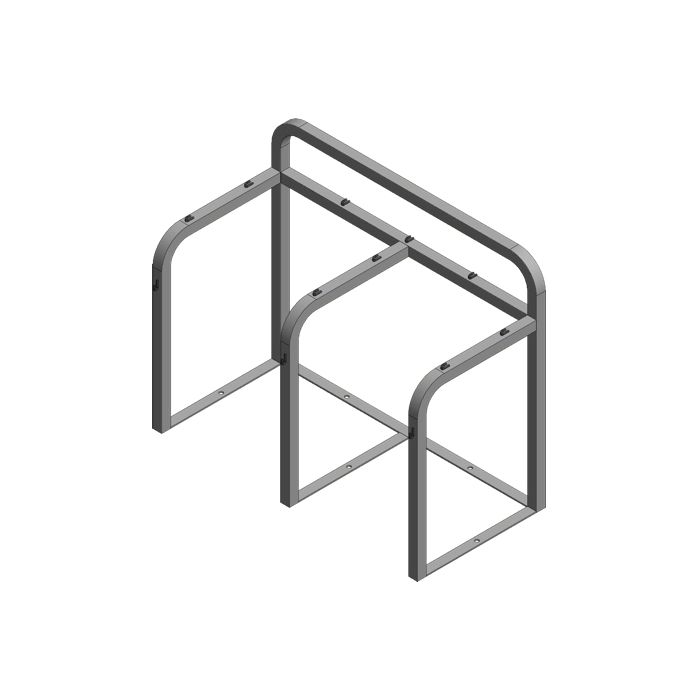

8 Cylinders - Basic - Gas Cylinder Rack
In stock
Model #
GRCR8SC
$655.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 4-5 weeks from order date. You will be sent a tracking # upon shipment.
Cylinder capacity: 8
Cylinder diameters supported: Up to 9.5"
Cylinder diameters supported: Up to 9.5"
Cylinder rack dimensions:
44.5"w x 21.5"d x 36.25"h
Cylinder Storage Rack Features:
- Fully welded 1.5" steel tube
- Holds up to 8 cylinders up to 9.5" in diameter
- Two zinc plated 3/16" steel chains included
- Pre-drilled 0.5" floor mounting holes on flat iron base
- Finished with black powder paint
- Industrial and commercial use
- Made in the USA
- Product weight: 46 lbs
Description:
This gas cylinder rack is for the storage of up to eight gas cylinders 9.5 inch standard diameter. The cylinder rack surrounds the cylinder with 1.5" steel tube, which is powder painted black. Includes two zinc plated 3/16" steel chains that hook onto the rack, which secures the cylinders on each side. There are pre-drilled 0.5 inch holes on the flat iron base. This product is made in the USA. Cylinders not included. Product dimensions (WxDxH): 44.5" x 21.5" x 36.25".
MPN: CR-8
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Secure rack to the ground/floor using the appropriate hardware for the floor material. Suggested bolt size is 5/16" or 3/8". Each rack has pre-drilled 0.5" holes in each arm for mounting to ground. It is recommended that a site survey be completed by the authority having jurisdiction to determine the suitability of the barricade racks at that location and to confirm all local regulations are being followed.
1 year warranty against manufacturing defects.
