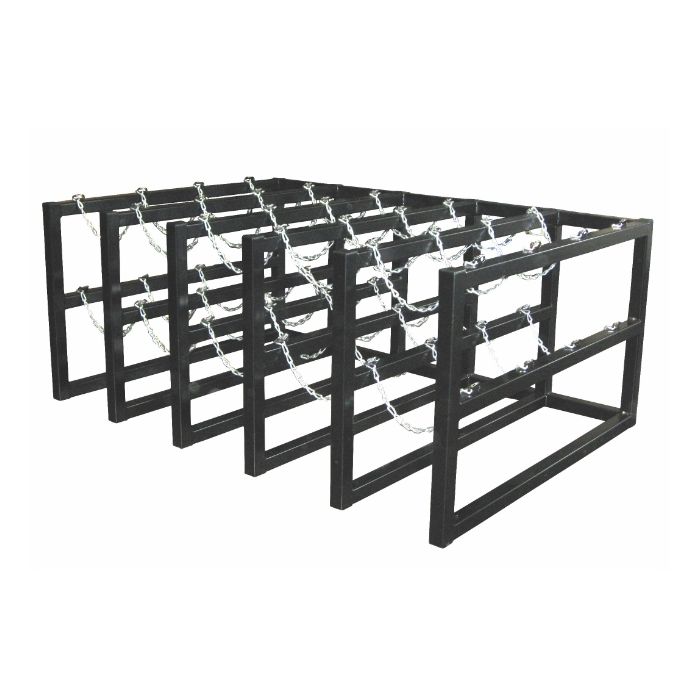

20 Cylinders (5x4) - Barricade Gas Cylinder Rack
In stock
Model #
BR5X4FS
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 2-3 weeks from order date. You will be sent a tracking # upon shipment.
Cylinder capacity: 1-20
Cylinder diameters supported: Up to 12"
Cylinder diameters supported: Up to 12"
Cylinder rack dimensions:
72"w x 50"d x 30"h
Note: These racks are oversize and require special production runs and special shipping accommodations. To save on cost, USA Safety recommends purchasing two smaller racks and positioning them side-by-side. However this is a great option if having one structural unit is essential for your application.
Related Product:
16 Cylinders (4x4) Barricade Gas Cylinder Rack
Related Product:
16 Cylinders (4x4) Barricade Gas Cylinder Rack
Gas Cylinder Storage Rack Features:
- 2" square steel tube continuously seam welded, 0.125" thick
- Meets USGS high seismic hazard zone requirements when installed properly
- OSHA, NFP1, NFPA 55 and CGA compliant when used properly
- Holds twenty cylinders, five wide by four deep
- Two levels of welded steel chains (19" long each)
- Snaps for each cylinder
- 12 Pre-drilled 0.531" diameter floor mounting holes
- Anchor bolts (Model # ACITW5FS) available for purchase separately (not included)
- Sealed with exterior grade black powder-coat paint
- Indoor or outdoor bulk cylinder storage
- Made in the USA
- Product weight: 389 lbs
Description:
This gas cylinder rack is recommended for indoor or outdoor bulk cylinder storage of cylinders up to 12 inches in diameter. Barricade racks surround cylinders with a two inch square steel tube that is 0.125 inch thick, which is continuously seam welded and sealed with exterior grade black powder-coat paint. The cylinder holder includes two levels of welded steel chains (19" long each) and snaps for each cylinder. This gas cylinder storage rack meets or exceeds OSHA, NFP1, NFPA 55, CGA, and USGS high seismic hazard zone requirements when used properly. It is made in the USA. Product Dimensions (WxDxH): 72" x 50" x 30".
MPN: 35182 (previously GSTD-5x4)
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Secure rack to the ground/floor using the appropriate hardware for the material. Typical size bolt is 1/2" by 5 1/2" size. Each rack has pre-drilled 0.531" holes in each arm for mounting to ground. It is recommended that a site survey be completed by the authority having jurisdiction to determine the suitability of the barricade racks at that location and to confirm all local regulations are being followed.
1 year warranty against manufacturing defects.
Ships on a pallet by freight truck.
