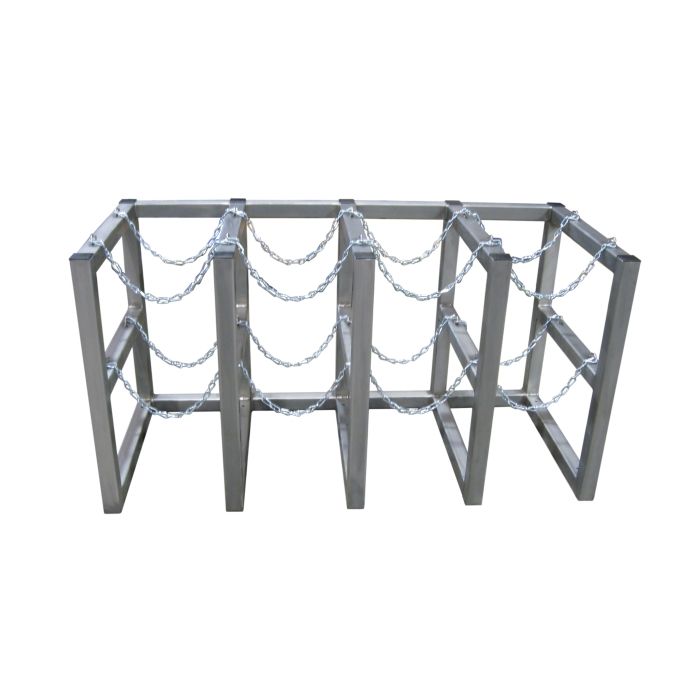

8 Cylinders (4x2) - Stainless Steel - Barricade - Gas Cylinder Rack
In stock
Model #
BR4X2SSFS
$4,125.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 4-6 weeks from order date. You will be sent a tracking # upon shipment.
Cylinder capacity: 1-8
Cylinder diameters supported: Up to 12"
Cylinder diameters supported: Up to 12"
Product dimensions:
58"w x 26"d x 30"h
Product Features:
- 2" square Type 304 Stainless steel tube continuously seam welded
- Meets USGS high seismic hazard zone requirements when installed properly
- OSHA, NFP1, NFPA 55 and CGA compliant when used properly
- Holds eight cylinders, four wide by two deep
- Two levels of welded Type 316 Stainless steel chains
- Snaps for each cylinder
- 10 Pre-drilled 0.531" diameter floor mounting holes
- Anchor bolts (Model # ACITW5FS) available for purchase separately (not included)
- Indoor or outdoor bulk cylinder storage
- Made in the USA
- Product weight: 249 lbs
Description:
This gas cylinder rack is recommended for indoor or outdoor bulk cylinder storage of gas cylinders up to 12 inches in diameter. Barricade racks surround cylinders with a two inch square Type 304 Stainless steel tube, which is continuously seam welded. The cylinder holder includes two levels of welded Type 316 Stainless steel chains and snaps for each cylinder. This gas cylinder storage rack meets or exceeds OSHA, NFP1, NFPA 55, CGA, and USGS high seismic hazard zone requirements when used properly. It is made in the USA. Product Dimensions (WxDxH): 58" x 26" x 30". MPN: 35154 (previously GSTD-4x2SS)
This gas cylinder rack is recommended for indoor or outdoor bulk cylinder storage of gas cylinders up to 12 inches in diameter. Barricade racks surround cylinders with a two inch square Type 304 Stainless steel tube, which is continuously seam welded. The cylinder holder includes two levels of welded Type 316 Stainless steel chains and snaps for each cylinder. This gas cylinder storage rack meets or exceeds OSHA, NFP1, NFPA 55, CGA, and USGS high seismic hazard zone requirements when used properly. It is made in the USA. Product Dimensions (WxDxH): 58" x 26" x 30". MPN: 35154 (previously GSTD-4x2SS)
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Secure rack to the ground/floor using the appropriate hardware for the material. Typical size bolt is 1/2" by 5 1/2" size. Each rack has pre-drilled 0.531" holes in each arm for mounting to ground. It is recommended that a site survey be completed by the authority having jurisdiction to determine the suitability of the barricade racks at that location and to confirm all local regulations are being followed.
1 year warranty against manufacturing defects.
Ships on a pallet by freight truck.
