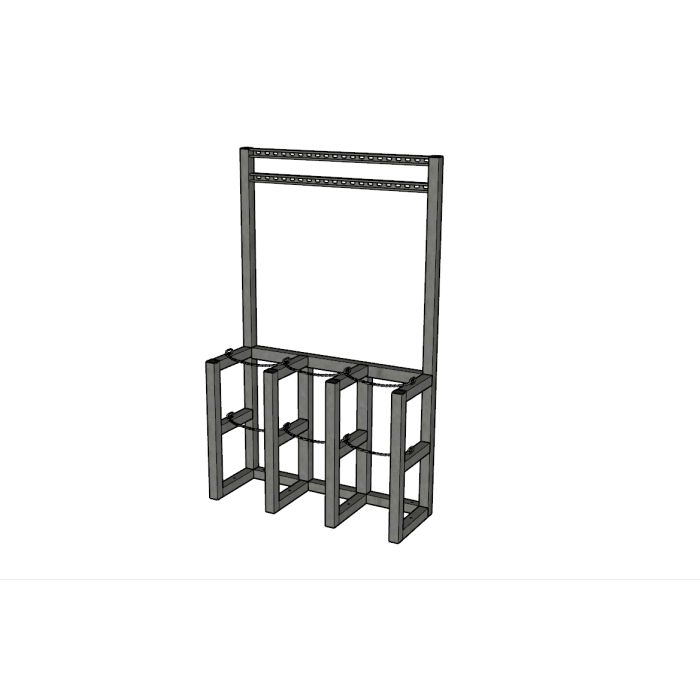

3 Cylinders (3x1) - Barricade - Process Station - Gas Cylinder Rack
In stock
Model #
BR3X1PSFS
$1,350.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 2-3 weeks from order date. You will be sent a tracking # upon shipment.
Cylinder capacity: 1-3
Cylinder diameters supported: Up to 12"
Cylinder diameters supported: Up to 12"
Cylinder rack dimensions:
44"w x 16"d x 72"h
Product Features:
- Cylinder rack meets USGS high seismic hazard zone requirements when installed properly
- Process Station: 2 strut mounting rails at 67 and 72 inch height from the floor
- OSHA, NFP1, NFPA 55 and CGA compliant when used properly
- 2" square steel tube continuously seam welded
- Holds three cylinders, three wide by one deep
- Two levels of welded steel chains (19" long each)
- 4 Pre-drilled 0.531" diameter floor mounting holes
- Anchor bolts (Model # ACITW5FS) available for purchase separately (not included)
- Gas cylinder rack includes snaps for each cylinder
- Sealed with exterior grade powder-coat paint
- Indoor or outdoor bulk cylinder storage
- Made in the USA
- Product weight: 210 lbs
Description:
This gas cylinder rack is recommended for indoor or outdoor bulk cylinder storage of gas cylinders up to 12 inches in diameter. Barricade cylinder racks surround cylinders with a two inch square steel tube, which is continuously seam welded and sealed with exterior grade powder-coat paint. The cylinder rack includes two levels of welded steel chains (19" long each) and snaps for each cylinder. This gas cylinder rack meets or exceeds OSHA, NFP1, NFPA 55, CGA, and USGS high seismic hazard zone requirements when used properly. Process station provides an additional 2 strut mounting rails at 67 and 72 inch height from the floor. It is made in the USA. Cylinder Rack Dimensions (WxDxH): 44" x 16" x 72".
MPN:
35124 (previously GSTD-3x1P)
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Secure rack to the ground/floor using the appropriate hardware for the material. Typical size bolt is 1/2" by 5 1/2" size. Each rack has pre-drilled 0.531" holes in each arm for mounting to ground. It is recommended that a site survey be completed by the authority having jurisdiction to determine the suitability of the barricade racks at that location and to confirm all local regulations are being followed.
1 year warranty against manufacturing defects.
Ships on a pallet by freight truck.
