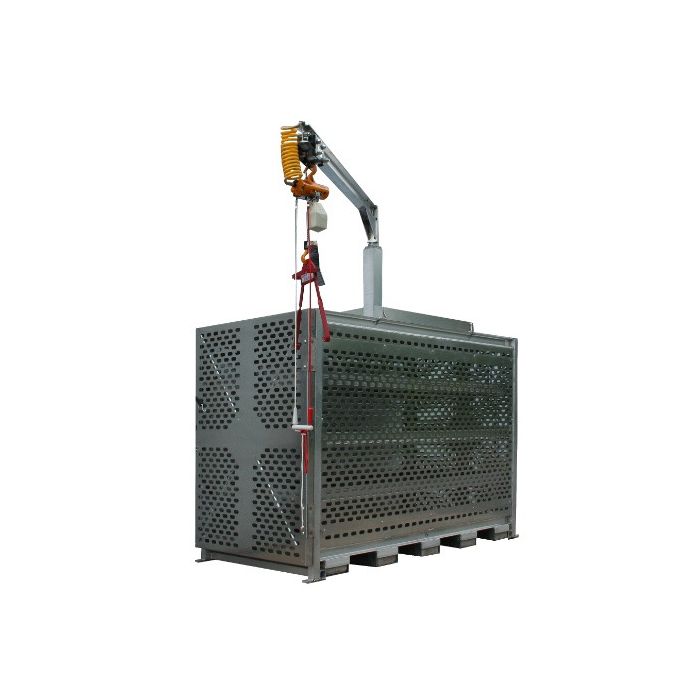

24 Propane Forklift Tanks (33-43 LB) - Lift Assist Exchange Station - Outdoor - Laser Cut Aluminum - Gas Cylinder Cage
In stock
Model #
CBBID24603HEAM
$24,865.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 6-8 weeks from order date. You will be sent a tracking # upon shipment.
Cabinet capacity: 24 cylinders (33-43 lb) of 12.5" diameter
Propane Cage dimensions:
96"w x 48"d x 74"h
Lift Assist Exchange Station Features:
- Gas cylinder locker meets OSHA 1910 and NFPA regulations
- Air powered hoist (air supply not included)
- Self-actuating cylinder tongs
- 360-degree crane arm
- Lockable doors (lock not included)
- 8" stainless steel door hinges
- Laser-cut aluminum sides and door allow visibility into cabinet
- Top and back are solid aluminum panels
- Pre-drilled holes (13/16") for anchoring each foot pad
- Safety signage included
- Some minor assembly required
- Made in the USA
- Product weight: 1175 lbs
24 Propane Forklift Tanks (33-43 LB) - Lift Assist Exchange Station - Outdoor - Laser Cut Aluminum - Gas Cylinder Cage
Model #
CBBID24603HEAM
Description:
The aluminum forklift storage cabinet holds up to 24 propane tanks (33-43 LB) in a horizontal position and includes an air powered hoist. The hoist is capable of lifting up to 100 lbs and has self-actuating cylinder tongs to lift the cylinder. You will need your own air supply compressor to connect to the hoist for use. The cabinet doors and side panels are made with laser cut aluminum. The top and back of the cabinet is made from solid aluminum panels. This unit has two doors on the ends for loading and unloading the cylinders. The doors on this storage unit have tamper resistant stainless steel hinges and are lockable (lock is not included). Tanks sit horizontally on solid 14 gauge galvanized steel shelf. "Propane - No Smoking" and 2-4-0 OHSA Diamond safety signage is included. Each footpad on the cage has 3/4" pre-drilled hole to anchor the cage to concrete. Meets OSHA and NFPA requirements for LP fuel cylinder storage. Minor assembly required. Shelf weight capacity 300 lbs each. Cabinet external dimensions (WxDxH): 96" x 48" x 74" Cylinders not included.
The aluminum forklift storage cabinet holds up to 24 propane tanks (33-43 LB) in a horizontal position and includes an air powered hoist. The hoist is capable of lifting up to 100 lbs and has self-actuating cylinder tongs to lift the cylinder. You will need your own air supply compressor to connect to the hoist for use. The cabinet doors and side panels are made with laser cut aluminum. The top and back of the cabinet is made from solid aluminum panels. This unit has two doors on the ends for loading and unloading the cylinders. The doors on this storage unit have tamper resistant stainless steel hinges and are lockable (lock is not included). Tanks sit horizontally on solid 14 gauge galvanized steel shelf. "Propane - No Smoking" and 2-4-0 OHSA Diamond safety signage is included. Each footpad on the cage has 3/4" pre-drilled hole to anchor the cage to concrete. Meets OSHA and NFPA requirements for LP fuel cylinder storage. Minor assembly required. Shelf weight capacity 300 lbs each. Cabinet external dimensions (WxDxH): 96" x 48" x 74" Cylinders not included.
MPN: BID24603H-E
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Place cabinet on level solid surface. The cabinet lower corners have foot-pads with a pre-drilled 3/4" mounting holes to anchor the cabinet. Use the appropriate hardware for the mounting surface. Mounting hardware not included. Check with your authority having jurisdiction to confirm all local regulations are being followed. The crane will need to be attached to the cabinet. Two 3/4" (19mm) wrenches will be needed to complete the assembly.
1-year warranty against manufacturing defects.
Ships mostly assembled on a pallet by freight truck. Loading dock or forklift required for delivery. If neither are available please request liftgate delivery at time of order.
