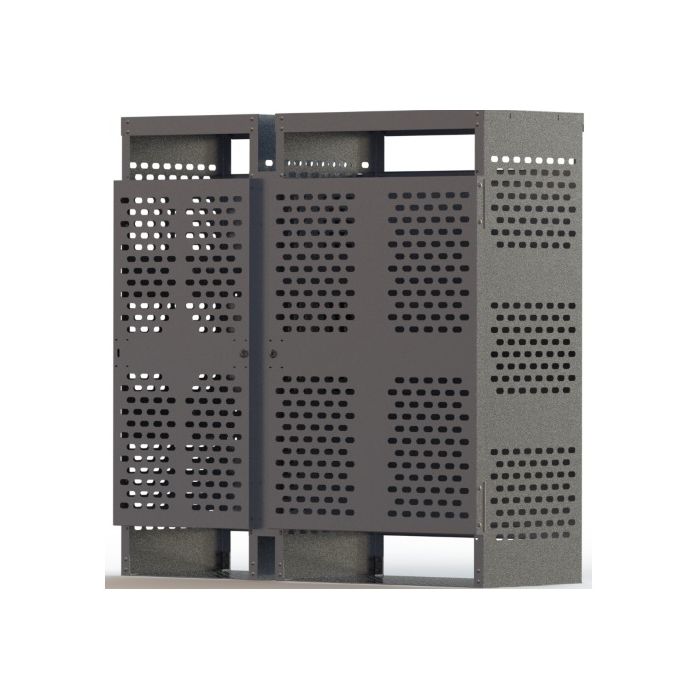

20 Cylinders - Large Tanks - Outdoor - Vertical Storage - Laser Cut Aluminum - Gas Cylinder Cage

$1,525.00
(Model #CBAL20322SAAM)
PRICE:
$1,525.00
$1,525.00
Status: Built to order
Shipping: Ships 5-10 business days from order date. You will be sent a tracking # upon shipment.
Cabinet capacity: Up to 20 cylinders of 9" diameter or equivalent combination
Cabinet dimensions: 76"w x 29"d x 82"h
Call 877-805-8650 with inquiries or to order by phone.
Gas Cylinder Locker Features:
  • Gas cylinder locker meets OSHA 1910 and NFPA regulations
  • 2 storage compartments (one holds up to 12 cylinders and the other 8 cylinders)
  • Lockable door with heavy duty lock receiver (lock not included)
  • Stainless steel hinges
  • Laser cut aluminum sides and door allow visibility into cabinet
  • Top and back are solid aluminum panels
  • Pre-drilled holes (13/16") in the four corners of the floor plate for anchoring
  • Aluminum diamond floor plate
  • Flammable signage in large red letters
  • Product panels bolt together and can be disassembled
  • Ships assembled
  • Optional safety chain available for purchase separately
  • Product Weight: 183 lbs
Product Description:
This gas cylinder cabinet holds up to 20 cylinders (9" diameter) in vertical position (12 cylinders in one compartment and 8 cylinders in the other compartment). The cabinet features heavy laser-cut aluminum door and side panels. The top and back of the cabinet is made from solid aluminum panels. The doors swing on tamper-resistant stainless steel hinges and has a heavy-duty lock receiver (lock is not included). Also comes with bright aluminum diamond floor plate. There is "Flammable - No Smoking" signage on the front of the cabinet. Meets OSHA and NFPA requirements for cylinder storage. Ships assembled. Optional safety chain set available for purchase separately. Cabinet dimensions (WxDxH): External: 76" x 29" x 82" MPN: A-HP20322SA
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
