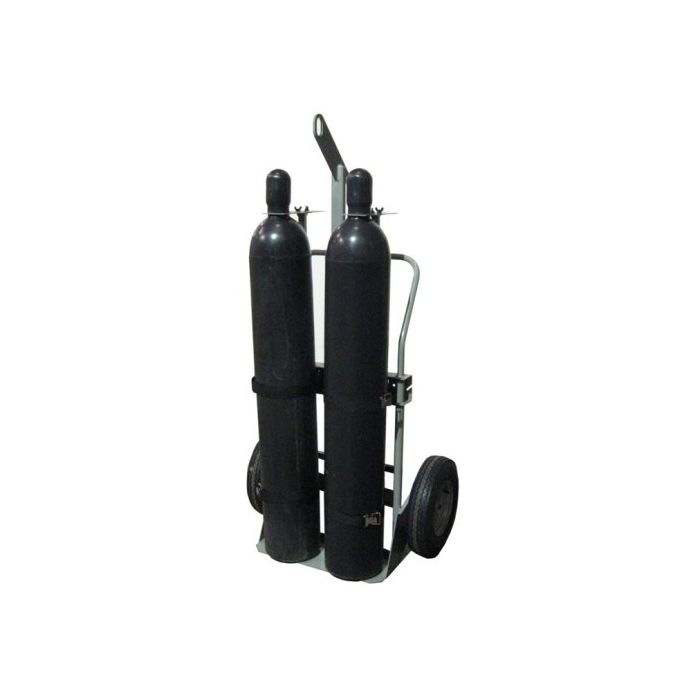

2 Cylinders - Hoist Hook - Heavy Duty - Gas Cylinder Dolly
In stock
Model #
HT3591FS
$1,360.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 3-4 weeks from order date. You will be sent a tracking # upon shipment.
Dolly capacity: 2 cylinders
Cylinder diameters supported: Up to 12" diameter
Lifting hook weight capacity: 600 lbs
Cylinder diameters supported: Up to 12" diameter
Lifting hook weight capacity: 600 lbs
Dolly dimensions:
35"w x 24"d x 68"h
Cylinder Dolly Features:
- Hook attachment for transport with hoist rigs
- Clamping posts to secure cylinders at any angle
- 16" diameter four-ply fully pneumatic speed rated wheels
- UFC, NFPA, CGA, & OSHA compliant
- Dual ball bearings on welded steel hubs
- 7 and 11 gauge hot rolled steel construction of base and supports
- 14 gauge and heavier tube framing
- Zero lift height loading, perimeter braced, eases loading and improves safety
- 54" long x 1.5" wide, lab tested cinch straps for each cylinder
- Powder-coat painted for durability
- Made in the USA using American steel and labor
- Product weight: 121 lbs
Description:
This gas cylinder hand truck holds up to two gas cylinders and rides on 16" diameter pneumatic speed rated wheels. The wheels are designed to support up to 1,000 lbs. The dolly holds cylinders up to 12" diameter. Triple handle design helps control the high center of gravity created by the extensive structural framing, which exists to make these units safe when lifted by hoist rigs. It gives the operator both high and low hand position, critical for safe handling of heavy tall loads. Construction is heavy 11 gauge HR Steel with 3/16 inch thick steel supports, 3/8 inch thick hoist plates and round steel tube. Cylinders can be secured with included heavy polypropylene straps and steel cinch buckles. There are two straps per cylinder. Unit is powder coated for durability and fully welded. The product is made in the U.S.A. using American steel and labor. This model includes a cylinder locking post system, developed for the US Navy, which clamps cylinders in place at any angle from upright to full 90 degree rotation. The combination of locking post and straps for each cylinder creates the safest lift system available anywhere. Product Dimensions (WxDxH): 35" x 24" x 68".
MPN:
35034 (previously G-3591)
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
1 year warranty against manufacturing defects.
Ships on a pallet by freight truck.
