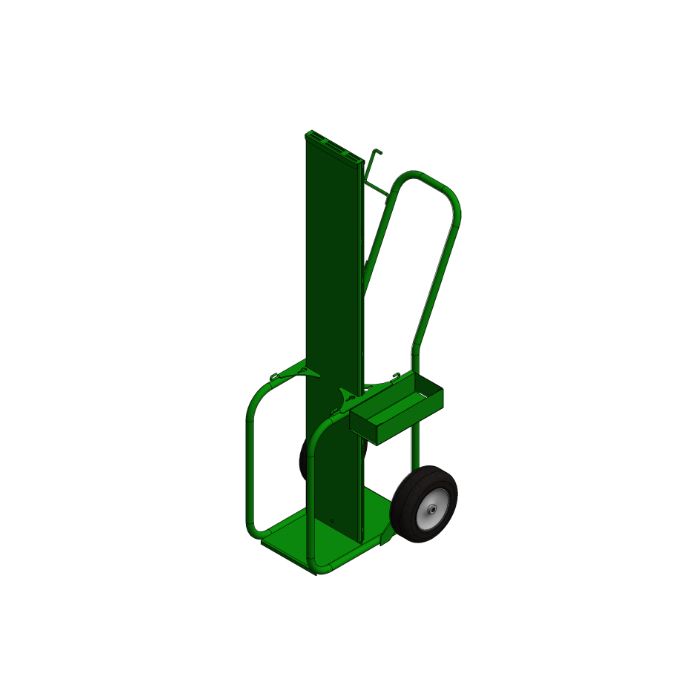

2 Cylinders - Firewall - Narrow - Heavy Duty - Green - Welding Cart
In stock
Model #
HT60110FWSC
$850.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 4-5 weeks from order date. You will be sent a tracking # upon shipment.
Welding cart capacity: 2 cylinders
Cylinder diameters supported: Up to 7" (fuel) & 9.5" (oxygen)
Cylinder diameters supported: Up to 7" (fuel) & 9.5" (oxygen)
Cylinder Carts dimensions:
External:
22"w
x
26"d x 60"h
Tool Tray: 5.125"w x 12"d x 3"h
Tool Tray: 5.125"w x 12"d x 3"h
Cylinder Firewall Cart Features:
- OSHA, NFPA (UFC) & CGA compliant
- Firewall barrier (1-hour rating)
- Tool tray for holding equipment
- 10" x 2.75" pneumatic wheels with 5/8" ball bearings
- Removable handle
- Two chains to secure cylinders
- Powder coated Green
- Made in the USA
- Product weight: 95 lbs
Description:
This gas torch cart holds up to two gas cylinders, one small B size Acetylene tank (7" diameter by 36"H) and one Oxygen tank (up to 9.5" diameter). It rides on 10" pneumatic wheels. Construction is of steel. This gas welding cart allows storage of fuel and oxygen cylinders in compliance with OSHA standard 1910.253 (b)(4)(iii) and NFPA 55-7.1.6.2.1 regulations with 1-hour fire barrier material. The firewall consists of two pieces of 14 gauge sheet steel with a baffle in between all welded together. The firewall dimension is approximately 60" tall by 12" wide. There is also a tool box and hose wrap hangers on the cart frame. Cylinders are secured on the cart with chains. It is powder coated for durability. Made in the USA. Cylinders not included. Welding Cart Dimensions (WxDxH): 22" x 26" x 60".
This gas torch cart holds up to two gas cylinders, one small B size Acetylene tank (7" diameter by 36"H) and one Oxygen tank (up to 9.5" diameter). It rides on 10" pneumatic wheels. Construction is of steel. This gas welding cart allows storage of fuel and oxygen cylinders in compliance with OSHA standard 1910.253 (b)(4)(iii) and NFPA 55-7.1.6.2.1 regulations with 1-hour fire barrier material. The firewall consists of two pieces of 14 gauge sheet steel with a baffle in between all welded together. The firewall dimension is approximately 60" tall by 12" wide. There is also a tool box and hose wrap hangers on the cart frame. Cylinders are secured on the cart with chains. It is powder coated for durability. Made in the USA. Cylinders not included. Welding Cart Dimensions (WxDxH): 22" x 26" x 60".
MPN: 601-10-FW
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Ships fully assembled, ready for use.
1-year warranty against manufacturing defects.
Ships fully assembled on a pallet by freight truck. Loading dock or forklift required for delivery. If neither are available please request liftgate delivery at time of order.
