12 Propane Tanks (33 lb) - Outdoor - Vertical Storage - Laser Cut Aluminum - Gas Cylinder Cage
In stock
Model #
CBALV12302LSAAM
$1,395.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 1-2 weeks from order date. You will be sent a tracking # upon shipment.
Cabinet capacity: 12 cylinders (33 lb) of 12.5" diameter
Cabinet dimensions:
External:
44"w
x
30"d x 68"h
Internal per section (approx): 43.75"w x 26"d x 28"h
Internal per section (approx): 43.75"w x 26"d x 28"h
Gas Cylinder Locker Features:
- Gas cylinder locker meets OSHA 1910 and NFPA regulations
- Lockable door (lock not included)
- Two 8" stainless steel door hinges
- Door can be left or right swing
- Laser cut aluminum holes for ventilation
- Aluminum diamond floor plate
- Pre-drilled holes (13/16") for anchoring cabinet corners
- Safety signage included
- Ships assembled ready for use
- Product panels bolt together and can be disassembled
- Made in the USA
- Product weight: 136 lbs
12 Propane Tanks (33 lb) - Outdoor - Vertical Storage - Laser Cut Aluminum - Gas Cylinder Cage
Model #
CBALV12302LSAAM
Description:

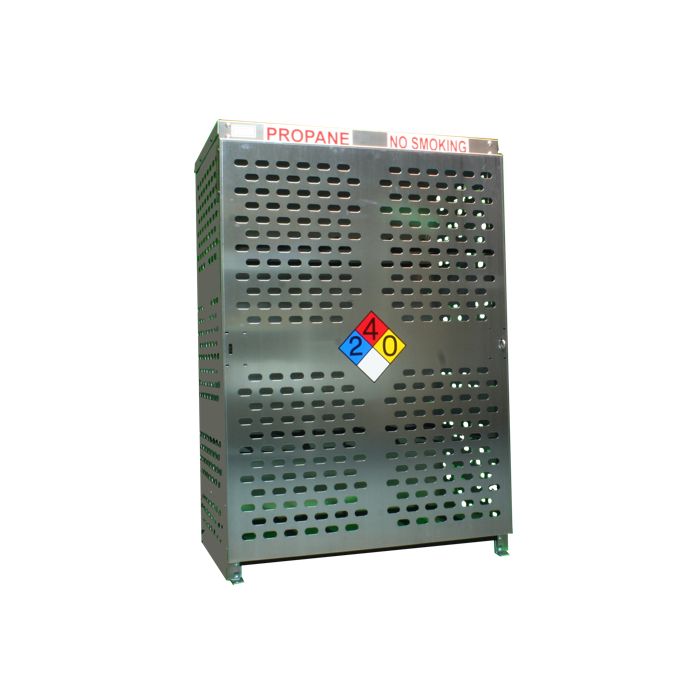

This cylinder cabinet is made from aluminum and holds up to 12 forklift propane tanks (33 lb size) in a vertical position. The cage doors and side panels are made with laser cut heavy aluminum panels. The top and back of the cabinet is made from solid aluminum panels. The door on this unit includes tamper resistant stainless steel hinges and is lockable (lock is not included). Shelf is made from 14 gauge galvanized steel. Cabinet floor is bright aluminum 3/16" diamond plate. "Propane - No Smoking" and 2-4-0 OSHA Diamond safety signage is included. The corners of the cage each have one 13/16" pre-drilled hole to accommodate anchor bolts. Meets OSHA and NFPA requirements for LP fuel cylinder storage. Ships assembled. Shelf weight capacity 300 lbs each. Cabinet dimensions (WxDxH): External: 44" x 30" x 68", Estimated Internal per section: 43.75"x26"x28"
This cylinder cabinet is made from aluminum and holds up to 12 forklift propane tanks (33 lb size) in a vertical position. The cage doors and side panels are made with laser cut heavy aluminum panels. The top and back of the cabinet is made from solid aluminum panels. The door on this unit includes tamper resistant stainless steel hinges and is lockable (lock is not included). Shelf is made from 14 gauge galvanized steel. Cabinet floor is bright aluminum 3/16" diamond plate. "Propane - No Smoking" and 2-4-0 OSHA Diamond safety signage is included. The corners of the cage each have one 13/16" pre-drilled hole to accommodate anchor bolts. Meets OSHA and NFPA requirements for LP fuel cylinder storage. Ships assembled. Shelf weight capacity 300 lbs each. Cabinet dimensions (WxDxH): External: 44" x 30" x 68", Estimated Internal per section: 43.75"x26"x28"
MPN: A-FV12302LSA
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Place cabinet on level surface. Cabinet frame bolts (9/16") can be loosened to shift the panels if needed to level the cabinet to the ground surface or square up the door. The cabinet lower corners have foot-pads with a pre-drilled 13/16" hole that can be used to anchor the cabinet if required. It is suggested that the cabinet be anchored to the mounting surface. Check with your authority having jurisdiction to confirm anchoring is required. Use the appropriate hardware for the mounting surface. Mounting hardware not included.
1 year warranty against manufacturing defects.
Ships fully assembled on a pallet by freight truck. Loading dock or forklift required for delivery. If neither are available please request liftgate delivery at time of order.
