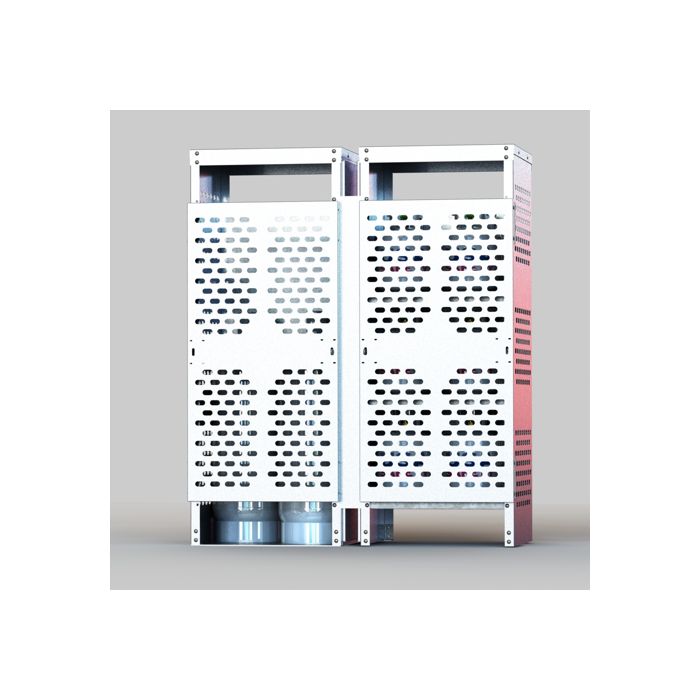

12 Propane Tanks (20 LB) and 8 Large Tanks - Combo Storage - Outdoor - Laser Cut Aluminum - Gas Cylinder Cage
In stock
Model #
CBAL20LBHPCOMBOAM
$2,480.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 2-3 weeks from order date. You will be sent a tracking # upon shipment.
Cabinet capacity:
Left compartment: 8 cylinders of 9" diameter or two 100 lb tanks
Right compartment: 12 cylinders (20 lb) of 12.5" diameter
Left compartment: 8 cylinders of 9" diameter or two 100 lb tanks
Right compartment: 12 cylinders (20 lb) of 12.5" diameter
Cylinder Cabinet dimensions:
60"w x 30"d x 82"h
Gas Tank Locker Features:
- Gas cylinder locker meets OSHA 1910 and NFPA regulations
- Lockable doors (lock not included)
- Stainless steel hinges
- Laser-cut aluminum sides and door allow visibility into cabinet
- Top and back are solid aluminum panels
- Pre-drilled holes (1/2") in floor plate for anchoring
- 3/16" Aluminum diamond floor plate
- Flammable signage in large red letters
- Product bolted together (not fully welded) so can be knocked down
- Ships assembled
- Made in the USA
- A safety chain set (Model # CB001AM) can be added to this product (optional)
- Product weight: 325 lbs
12 Propane Tanks (20 LB) and 8 Large Tanks - Combo Storage - Outdoor - Laser Cut Aluminum - Gas Cylinder Cage
Model #
CBAL20LBHPCOMBOAM
Description:
Store up to 12 propane tanks (20 lb) in a vertical position on one side and 8 tall tanks (or two 100 lb tanks) in a vertical position on the other side of this combo cylinder safety cabinet. The cabinet features heavy laser-cut aluminum door and side panels. The top and back of the cabinet is made from solid aluminum panels. The doors swing on tamper-resistant stainless steel hinges and are lockable (lock is not included). The 20 lbs tanks sit vertically on solid 14 gauge galvanized steel shelf. There are four 1/2" pre-drilled holes in the 3/16" thick bright aluminum diamond plate floor of the large tank storage compartment available for anchoring. There is "Flammable - No Smoking" signage on the front of the cabinet. Meets OSHA and NFPA requirements for cylinder storage. Ships fully assembled. This product is made in the USA. Optional safety chain set available for purchase separately. Meets OSHA and NFPA requirements for LP fuel cylinder storage. Cabinet dimensions (WxDxH): External: 60" x 30" x 82"
Store up to 12 propane tanks (20 lb) in a vertical position on one side and 8 tall tanks (or two 100 lb tanks) in a vertical position on the other side of this combo cylinder safety cabinet. The cabinet features heavy laser-cut aluminum door and side panels. The top and back of the cabinet is made from solid aluminum panels. The doors swing on tamper-resistant stainless steel hinges and are lockable (lock is not included). The 20 lbs tanks sit vertically on solid 14 gauge galvanized steel shelf. There are four 1/2" pre-drilled holes in the 3/16" thick bright aluminum diamond plate floor of the large tank storage compartment available for anchoring. There is "Flammable - No Smoking" signage on the front of the cabinet. Meets OSHA and NFPA requirements for cylinder storage. Ships fully assembled. This product is made in the USA. Optional safety chain set available for purchase separately. Meets OSHA and NFPA requirements for LP fuel cylinder storage. Cabinet dimensions (WxDxH): External: 60" x 30" x 82"
MPN: A-HP16LBCOMBOSA
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Place cabinet on level surface. Cabinet frame bolts (9/16") can be loosened to shift the panels if needed to level the cabinet to the ground surface or square up the door. The cabinet lower corners have foot-pads with a pre-drilled 13/16" hole that can be used to anchor the cabinet if required. It is suggested that the cabinet be anchored to the mounting surface. Check with your authority having jurisdiction to confirm anchoring is required. Use the appropriate hardware for the mounting surface. Mounting hardware not included.
1 year warranty against manufacturing defects.
Ships fully assembled on a pallet by freight truck. Loading dock or forklift required for delivery. If neither are available please request liftgate delivery at time of order.
