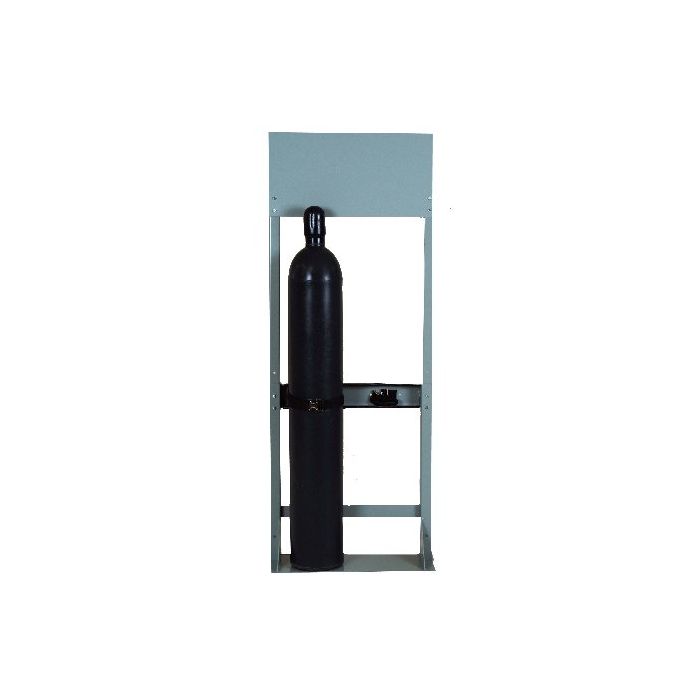

2 Cylinders - Process Station - Gas Cylinder Rack
In stock
Model #
PR277FS
$480.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 2-3 weeks from order date. You will be sent a tracking # upon shipment.
Cylinder capacity: 1-2
Cylinder diameters: Up to 12"
Cylinder diameters: Up to 12"
Cylinder rack dimensions:
28"w x 12"d x 72"h
Cylinder Rack Features:
- OSHA, NFPA (UFC) & CGA compliant
- 1.5" Polypropylene strap and cinch buckle
- Cylinder rack has fully welded construction
- Quality epoxy powder paint finish for long service life
- Steel reinforced vinyl edge guards protect equipment
- Constructed from 11 gauge and heavier plate steel
- Elevated panel (28" by 14") allows for mounting of cylinder controls, cross-over devices, etc.
- A chain set (Model # GB105FS) can be added to this product (optional)
- Unit ships partially disassembled for freight savings & ease of use
- Unit ships LTL Freight
- Industrial and commercial use
- Made in the USA
- Product weight: 60 lbs
Description:
This gas cylinder rack is designed and built for the safe storage of industrial and commercial use gas cylinders up to 12 inches in diameter. The cylinder rack is constructed from 11 gauge plate steel. The two cylinder capacity process station shares the 1.5 inch polypropylene straps and steel cinch buckles used in our brackets. Fully welded construction and quality epoxy powder paint finishes provide structural integrity and long service life. As with our cylinder brackets, surfaces coming into direct contact with the cylinders are protected with steel reinforced vinyl edge guards, protecting your cylinders. Chain sets can be added for secondary support. An elevated panel (28 by 14 inches) allows for mounting of cylinder controls, cross-over devices, etc. This unit ships partially disassembled for freight savings and ease of use. This cylinder rack is made in the USA. Product Dimensions (WxDxH): 28" x 12" x 72".
MPN:
35306 (previously G-277)
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Stand needs to be mounted to a fixed surface. It has four 0.406" diameter holes drilled in the four corners of the base plate to anchor the stand to the ground. Use 5/16" (9mm) hardware. There are also a total of six 0.375" diameter pre-drilled holes (3 per upright post) for mounting the stand to the wall.
1 year warranty against manufacturing defects.
Small quantities may have the option to ship parcel, contact customer service for more information. Larger quantities (>150 lbs) will ship freight.
