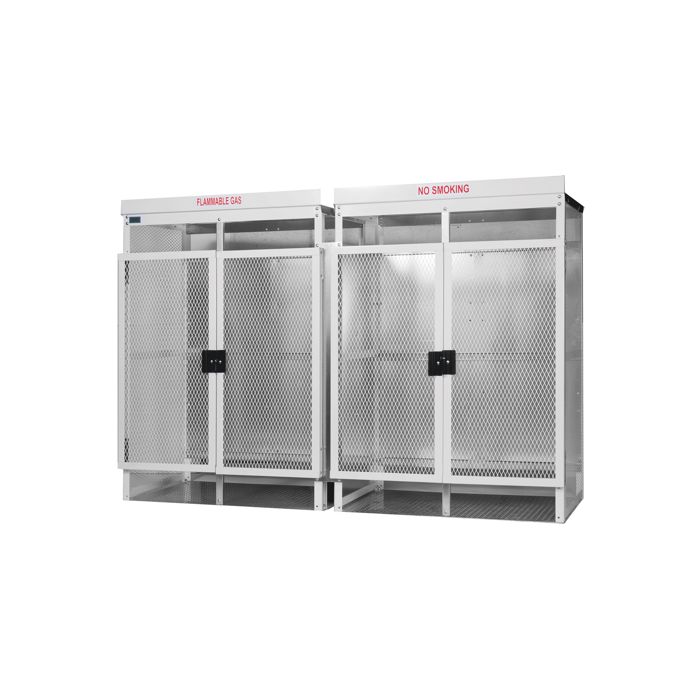

46 Cylinders - Firewall Separated - Large Tanks - Outdoor - Vertical Storage - Steel & Mesh - Gas Cylinder Cage
In stock
Model #
CB46443DFWXDAAM
$4,225.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 2-3 weeks from order date. You will be sent a tracking # upon shipment.
Cabinet capacity: Up to 46 cylinders of 9" diameter or equivalent combination
Cabinet dimensions:
121"w x 38"d x 82"h
Gas Cylinder Locker Features:
- Gas cylinder locker meets OSHA 1910 and NFPA regulations
- Two compartments (23 cylinders per side)
- Compartments are separated with 1 hour firewall construction
- Lockable doors with heavy duty lock receiver (lock not included)
- Stainless steel hinges
- Mesh sides and door allow visibility into cabinet
- Top and back are solid galvanized steel
- 3/16" Aluminum diamond floor plate
- Powder coated with outdoor grade paint for extra durability
- Safety signage in large red letters
- Pre-drilled holes (1/2") in floor plate for anchoring
- Product bolts together and can be disassembled
- Ships in 2 pieces. Minor assembly required.
- Made in the USA
- A safety chain set (Model # CB001AM) can be added to this product (optional)
- Product weight: 1050 lbs
46 Cylinders - Firewall Separated - Large Tanks - Outdoor - Vertical Storage - Steel & Mesh - Gas Cylinder Cage
Model #
CB46443DFWXDAAM
Description:
This gas cylinder cabinet holds up to 46 cylinders (9" diameter) in vertical position in two compartments (23 cylinders on one side and 23 cylinders on the other side). The two compartments are separated by a 1-hour rated firewall construction for safe storage of oxygen and fuel cylinders. The firewall construction consists of two fire rated 5/8" sheetrock panels wrapped in galvanized steel panels and an airspace gap which all together provides a 1-hour fire rating. The tank cabinet features steel galvanized screen that is coated with hi-build electrostatic powder coating. The top and back of the cabinet is made from solid galvanized steel panels. The doors on this unit includes tamper resistant stainless steel hinges and a heavy duty lock receiver (lock is not included). Door openings are over 6 feet high to allow for easy interior access (no bending). Includes "Flammable Gas - No Smoking" signage. There are four 1/2" pre-drilled holes in the 3/16" thick bright aluminum diamond plate floor of each compartment available for anchoring. Meets OSHA and NFPA requirements for cylinder storage. The two sections ship separately, minor assembly required to join them together. This product is made in the USA. Optional safety chain set available for purchase separately. Cabinet dimensions (WxDxH): External: 121" x 38" x 82" Firewall Dimensions (DxH): 32.6875" x 68.625"
MPN:
HP46443DFWXDA
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Place cabinet on level surface. Cabinet frame bolts (9/16") can be loosened to shift the panels if needed to level the cabinet to the ground surface or square up the door. The cabinet floor plate has a pre-drilled 1/2" holes that can be used to anchor the cabinet if required.
1 year warranty against manufacturing defects.
Ships fully assembled on a pallet by freight truck. Loading dock or forklift required for delivery. If neither are available please request liftgate delivery at time of order.
