29 Cylinders - Firewall Separated - Large Tanks - Outdoor - Vertical Storage - Double Door & Single Door - Steel & Mesh - Gas Cylinder Cage

$1,935.00
(Model #CB29432DFWAAM)
PRICE:
$1,935.00
$1,935.00
Status: Built to order
Shipping: Ships 5-10 business days from order date. You will be sent a tracking # upon shipment.
Cabinet capacity: Up to 29 cylinders of 9" diameter or equivalent combination
Cabinet dimensions: 107"w x 29"d x 82"h
Call 877-805-8650 with inquiries or to order by phone.
Gas Cylinder Locker Features:
  • Gas cylinder locker meets OSHA 1910 and NFPA regulations
  • 2 storage compartments (one holds up to 17 cylinders and the other 12 cylinders)
  • Compartments are separated with 1 hour firewall panel construction
  • Lockable doors with heavy duty lock receiver (lock not included)
  • Stainless steel hinges
  • Mesh sides and door allow visibility into cabinet
  • Top and back are solid galvanized steel
  • Aluminum diamond floor plate
  • Powder coated with outdoor grade paint for extra durability
  • Safety signage in large red letters
  • Pre-drilled holes (13/16") in the corners for anchoring
  • Product panels bolt together and can be disassembled
  • Ships assembled
  • Optional safety chain available for purchase separately
  • Product Weight: 822 lbs
Product Description:

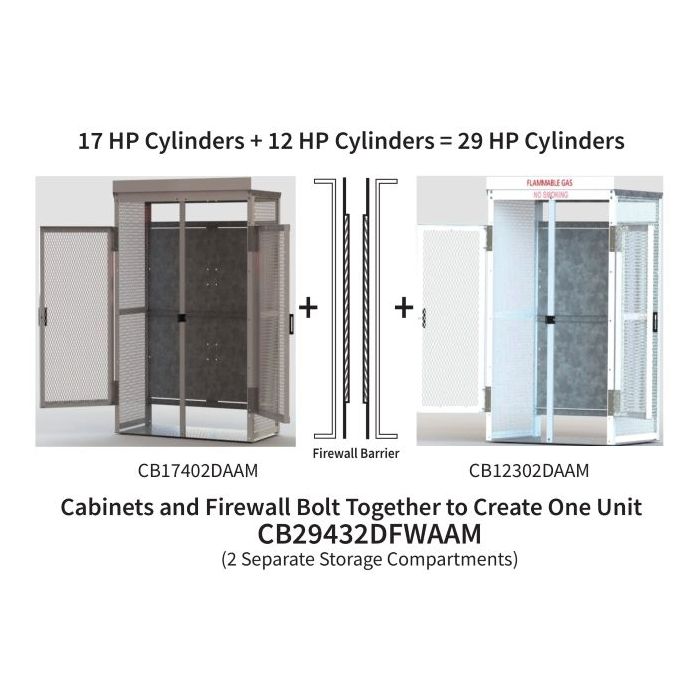

This gas cylinder cabinet holds up to 29 cylinders (9" diameter) in vertical position in two compartments (17 cylinders on one side and 12 cylinders on the other side). The two compartments are separated by a 1-hour rated firewall construction for safe storage of oxygen and fuel cylinders. The firewall construction consists of two fire rated sheetrock panels wrapped in galvanized steel panels and an airspace gap which all together provides a 1-hour fire rating. The tank cabinet construction features steel galvanized screen that is coated with hi-build electrostatic powder coating. The top and back of the cabinet is made from solid galvanized steel panels. The larger compartment has double doors and the smaller compartment has a single door. Both use tamper resistant stainless steel hinges and have a heavy duty lock receiver (lock is not included). Also comes with bright aluminum diamond floor plate and "Flammable Gas - No Smoking" signage. There are pre-drilled holes in the bottom corners of the cabinet for anchoring. Meets OSHA and NFPA requirements for cylinder storage. Ships assembled. Optional safety chain set available for purchase separately. Cabinet dimensions (WxDxH): External: 107" x 29" x 82" MPN: HP29432DFWA
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
