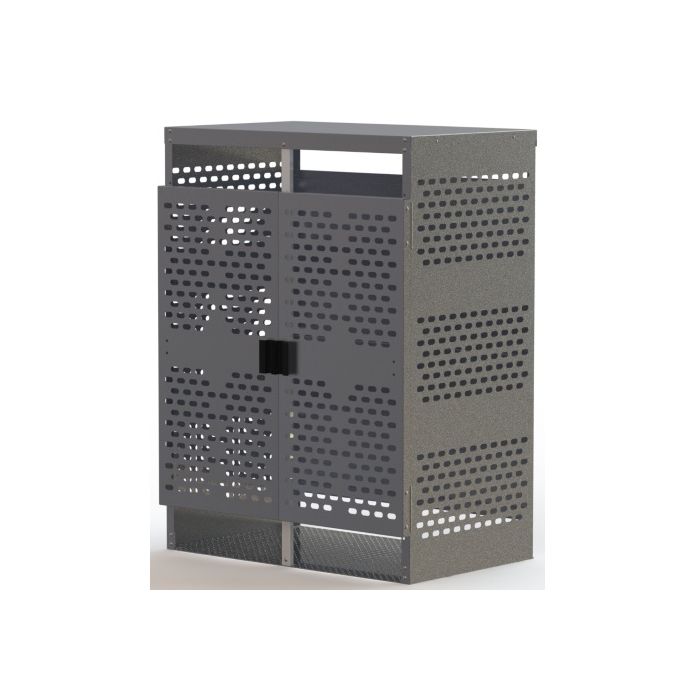

23 Cylinders - Large Tanks - Outdoor - Vertical Storage - 2 Doors - Laser Cut Aluminum - Gas Cylinder Cage
In stock
Model #
CBAL23403DAAM
$1,785.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 1-2 weeks from order date. You will be sent a tracking # upon shipment.
Cabinet capacity: Up to 23 cylinders of 9" diameter or 7 - 100 lb propane cylinders or equivalent combination
Cabinet dimensions:
58"w x 38"d x 82"h
Gas Cylinder Locker Features:
- Gas cylinder locker meets OSHA 1910 and NFPA regulations
- Lockable double doors with heavy duty lock receiver (lock not included)
- 8" stainless steel hinges
- Laser cut aluminum panels
- Top and back are solid aluminum panels
- 3/16" Aluminum diamond floor plate
- Safety signage in large red letters
- Pre-drilled holes (1/2") in floor plate for anchoring
- Product panels bolt together and can be disassembled
- Ships assembled
- Made in the USA
- A safety chain set (Model # CB001AM) can be added to this product (optional)
- Product weight: 240 lbs
23 Cylinders - Large Tanks - Outdoor - Vertical Storage - 2 Doors - Laser Cut Aluminum - Gas Cylinder Cage
Model #
CBAL23403DAAM
Description:
This gas cylinder cabinet holds up to 20 cylinders (9" diameter) or seven 100 lb propane cylinders in a vertical position in one compartment. The tank cabinet features laser cut aluminum panels. The top and back of the cabinet is made from solid aluminum panels. The unit has double doors that use tamper resistant stainless steel hinges and a heavy duty lock receiver (lock is not included). The cabinet comes with "Flammable Gas - No Smoking" signage. There are four 1/2" pre-drilled holes in the 3/16" thick bright aluminum diamond plate floor of the cabinet available for anchoring. Meets OSHA and NFPA requirements for cylinder storage. Ships assembled. This product is made in the USA. Optional safety chain set available for purchase separately. Cabinet dimensions (WxDxH): External: 58" x 38" x 82", Estimated Internal Dimensions: 57" x 34" x 75". 25.5" wide doorway clearance (between center post and side frame of cabinet). The space between the top of the cabinet and back/door is 7 3/4". The space between back/door and the ground is 8 3/4".
MPN:
A-HP23403DA
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Place cabinet on level surface. Cabinet frame bolts (9/16") can be loosened to shift the panels if needed to level the cabinet to the ground surface or square up the door. The cabinet floor plate has a pre-drilled 1/2" holes that can be used to anchor the cabinet if required.
1 year warranty against manufacturing defects.
Ships fully assembled on a pallet by freight truck. Loading dock or forklift required for delivery. If neither are available please request liftgate delivery at time of order.
