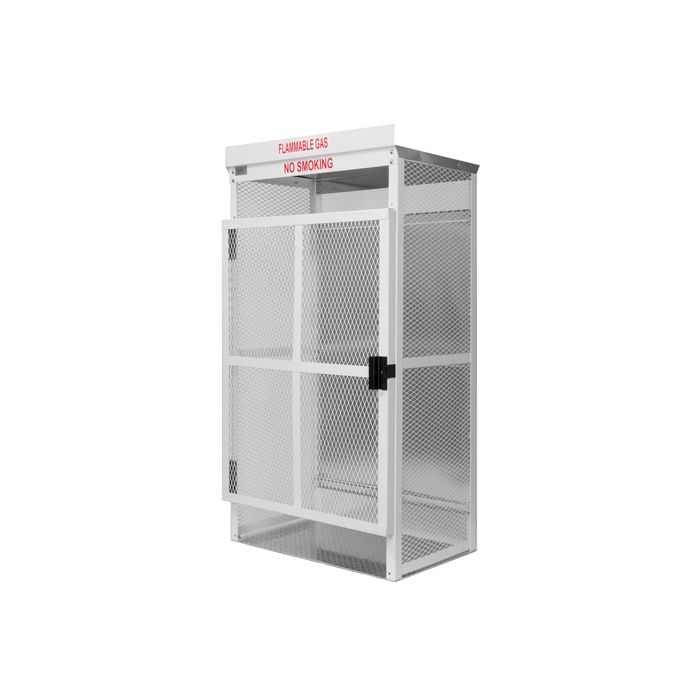

12 Cylinders - Large Tanks - Outdoor - Vertical Storage - Steel & Mesh - Gas Cylinder Cage
In stock
Model #
CB12302SAAM
$1,125.00
Call 1-877-805-8650 to order or request quote by phone.
Status:
Built to order
Shipping:
Ships 2-3 weeks from order date. You will be sent a tracking # upon shipment.
Cabinet capacity: Up to 12 cylinders of 9" diameter, 3 - 100 lb propane cylinders or equivalent combination
Cabinet dimensions:
44"w x 29"d x 82"h
Gas Cylinder Locker Features:
- Gas cylinder locker meets OSHA 1910 and NFPA regulations
- Lockable door with heavy duty lock receiver (lock not included)
- Stainless steel hinges
- Mesh sides and door allow visibility into cabinet
- Top and back are solid galvanized steel
- 3/16" Aluminum diamond floor plate
- Powder coated with outdoor grade paint for extra durability
- Safety signage in large red letters
- Pre-drilled holes (1/2") in floor plate for anchoring
- Product bolted together (not fully welded) so can be disassembled
- Ships assembled
- Made in the USA
- A safety chain set (Model # CB001AM) can be added to this product (optional)
- Product weight: 242 lbs
12 Cylinders - Large Tanks - Outdoor - Vertical Storage - Steel & Mesh - Gas Cylinder Cage
Model #
CB12302SAAM
Description:
This gas cylinder cabinet holds up to 12 cylinders (9" diameter) or three 100 lb propane cylinders in a vertical position. The tank cabinet features steel galvanized screen that is coated with hi-build electrostatic powder coating. The top and back of the cabinet is made from solid galvanized steel panels. The door on this unit includes tamper resistant stainless steel hinges and a heavy duty lock receiver (lock is not included). Also comes with "Flammable Gas - No Smoking" signage. There are four 1/2" pre-drilled holes in the 3/16" thick bright aluminum diamond plate floor of the cabinet available for anchoring. Meets OSHA and NFPA requirements for cylinder storage. Ships assembled. This product is made in the USA. Optional safety chain set available for purchase separately. Cabinet dimensions (WxDxH): External: 44" x 29" x 82", Estimated Internal Dimensions: 43" x 25" x 75". The space between the top of the cabinet and sides/back/door is 7 3/4". The space between sides/back/door and the ground is 8 3/4".
MPN:
HP12302SA
Get more information:
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Call 1-877-805-8650 (M-F, 9-5 p.m. CST) if you have questions about this product.
Place cabinet on level surface. Cabinet frame bolts (9/16") can be loosened to shift the panels if needed to level the cabinet to the ground surface or square up the door. The cabinet floor plate has a pre-drilled 1/2" holes that can be used to anchor the cabinet if required.
1 year warranty against manufacturing defects.
Ships fully assembled on a pallet by freight truck. Loading dock or forklift required for delivery. If neither are available please request liftgate delivery at time of order.
